3VA9134-0JB10
Siemens
Siemens 3VA9134-0JB10 wire connector accessory for 3VA5 125 circuit breakers. This terminal block offers versatile connections compliant with IEC and UL standards.
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With |

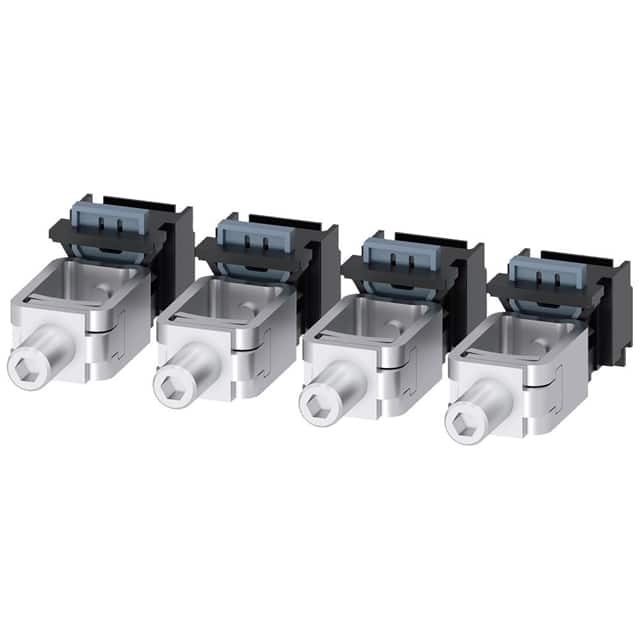

This Siemens 3VA9134-0JA11 is a box terminal accessory, part of the SENTRON product line. It is specifically designed for compatibility with the 3VA5 125 series of circuit breakers.
The accessory facilitates electrical connections with support for both IEC and UL standards. For IEC connections, it accommodates stranded copper cables ranging from 1.5 mm² to 70 mm², with a stripped length of 12 mm. Tightening torques vary based on conductor type and size, ranging from 45 lb-in for solid and finely stranded cables (1.5-16 mm²) to 70 lb-in for stranded and finely stranded cables (25-70 mm² and 25-50 mm² respectively).
Under UL standards, it accepts solid, stranded, and finely stranded copper cables from 14 AWG to 10 AWG for solid conductors, and up to 3/0 AWG for stranded and finely stranded conductors. The stripped length for UL connections is 0.5 inches. Tightening torques for UL connections are 45 lb-in for solid (14-10 AWG) and stranded/finely stranded (14-6 AWG) conductors, and 70 lb-in for larger stranded/finely stranded conductors (4 AWG - 3/0 AWG).
This accessory is classified under MSL 1, indicating unlimited usability. It is supplied as a box terminal.
The accessory type is a Terminal Block.
It is designed for use with the 3VA5 125 series of circuit breakers.
It supports stranded copper cables from 1.5 mm² to 70 mm².
The stripped length required for IEC connections is 12 mm.
For solid copper cable, it supports sizes from 14 AWG to 10 AWG.
The stripped length for UL connections is 0.5 inches.
The RoHS status is RoHS3 Compliant.
