3VA9134-0JB10
Siemens
Siemens 3VA9134-0JB10 wire connector accessory for 3VA5 125 circuit breakers. This terminal block offers versatile connections compliant with IEC and UL standards.
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With |

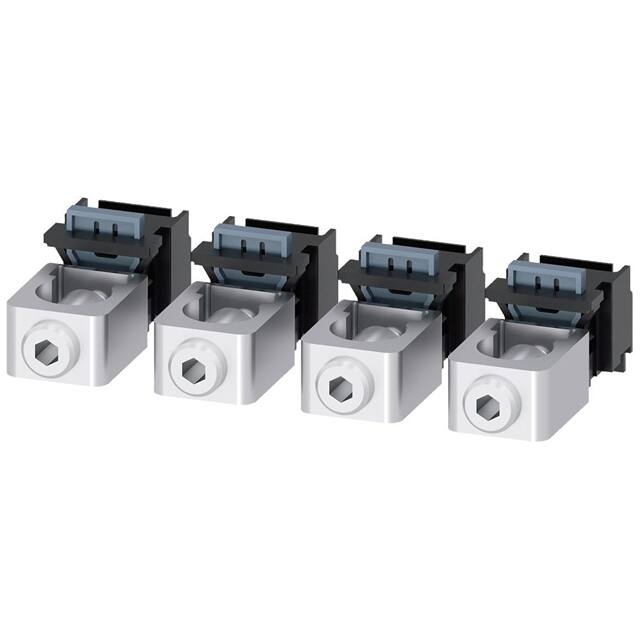

This Siemens SENTRON 3VA9134-0JB11 is a wire connector accessory, specifically a terminal block, designed for integration with 3VA5 125 circuit breakers. It facilitates secure electrical connections for various conductor types and sizes.
The accessory supports a wide range of conductor cross-sections according to IEC standards, accommodating copper cable (stranded) from 10 mm² to 95 mm², and aluminum cable (solid) from 10 mm² to 16 mm², or stranded from 10 mm² to 95 mm². Tightening torques for copper cables range from 6.2 Nm for 10 mm² to 11.3 Nm for larger sizes.
UL standards are also met, with permissible conductor temperatures of 75 °C. The connectable conductor cross-section for copper cable (stranded and finely stranded) ranges from 8 AWG to 3/0 AWG, and for aluminum cable (stranded) from 12 AWG to 3/0 AWG. Tightening torques under UL specifications are 55 lb-in for 8 AWG and 100 lb-in for 6 - 3/0 AWG copper cables.
This wire connector comes in a pack of 4 units and is suitable for applications requiring reliable termination in circuit protection systems.
The terminal designation is TA1.1.
Copper stranded cables from 10 mm² to 95 mm² are supported.
The stripped length is 12.2 mm.
The tightening torque is 6.2 Nm.
Copper stranded cables from 8 AWG to 3/0 AWG are accepted.
The permissible conductor temperature is 75 °C according to UL 486A-486B.
The accessory is supplied as 4 units.
