3VA6225-5KP41-2AA0
Siemens
The Siemens 3VA6225-5KP41-2AA0 is a 4-pole molded-case circuit breaker with a 250A current rating and a 690V voltage rating. It offers a breaking capacity of 35kA at 480V.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

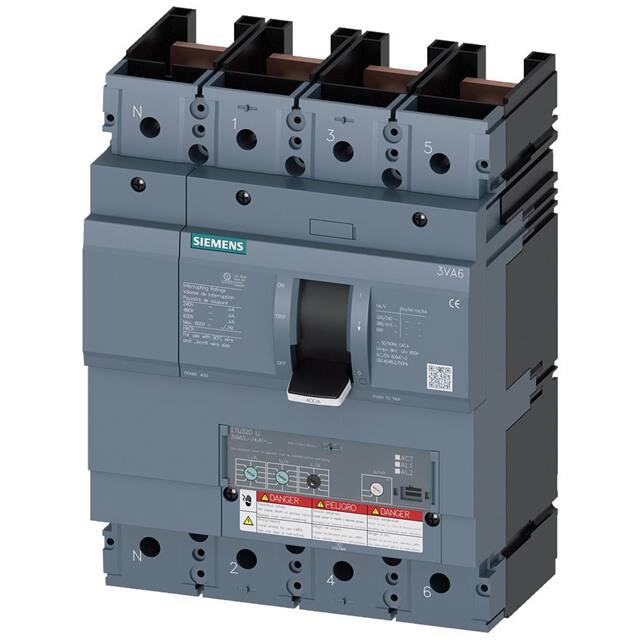

This Siemens 3VA6325-5HL41-2AA0 is a 4-pole molded-case circuit breaker from the 3VA6 series, suitable for system protection applications. It features an ETU320 electronic trip unit with LI protection functions and an adjustable current rating from 100A to 250A.
The breaker has an operational current of 250A at temperatures up to 70°C and a significant breaking capacity, rated at 35kA at 480V according to UL 489 standards, and up to 85kA at 240V according to IEC 60947 standards. It is designed for DIN rail mounting and has a protection class of IP40 on the front.
Key electrical specifications include an insulation voltage of 600V and a maximum power loss of 27.3W. The mechanical service life is typically 15,000 switching cycles, with electrical endurance varying based on voltage and load conditions. The unit is marked as a 100%-rated breaker according to UL 489.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operational current is 250A at temperatures from 55°C to 70°C.
The voltage rating is 690 V.
The breaking capacity is 35kA at 480V.
It features an ETU320 electronic trip unit with LI protection functions.
It is designed for DIN rail mounting.
