3VA5225-5GC41-0AA0
Siemens
The Siemens 3VA5225-5GC41-0AA0 is a 4-pole molded-case circuit breaker designed for system protection. It offers a current rating of 250A and a maximum operational voltage of 690V AC.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

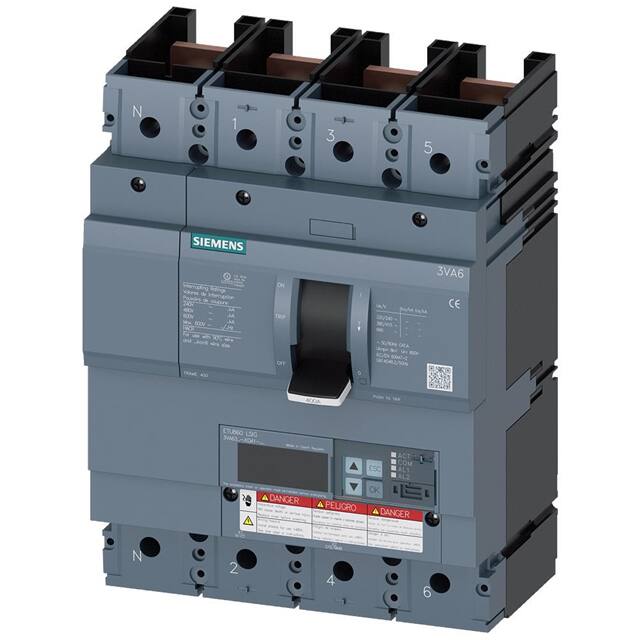

The Siemens 3VA6325-5KQ41-2AA0 is a 4-pole molded-case circuit breaker from the SENTRON series, designed for system protection applications. This breaker operates with a rated current of 250A and offers a breaking capacity of 35kA at 480V according to UL 489 standards, and 55kA at 415V per IEC 60947.
It features an ETU860 electronic trip unit with LSIG protection functions, allowing for adjustable overload protection (Ir) from 100A to 250A, short-circuit protection (Isd) from 0.6 to 10x In, and instantaneous trip (Ii) from 1.5 to 12x In. The breaker also includes adjustable ground-fault protection (Ig) and a switchable I2t function. With an insulation voltage of 600V and a mechanical service life of 15,000 cycles, it is built for durability.
The 3VA6325-5KQ41-2AA0 is suitable for DIN rail mounting and supports communication and other measurement functions. It is marked as UL 489 100%-rated and carries CCC, CE, CSA, and EAC approvals, making it a versatile component for various industrial and commercial electrical systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operational current rating is 250A at temperatures up to 70°C.
The breaking capacity according to UL 489 is 35kA at 480V, and according to IEC 60947 it is 55kA at 415V.
The ETU860 offers LSIG protection functions, including adjustable overload, short-circuit, and ground-fault protection.
The assigned insulation voltage (Ui) is 600V.
The mounting type is DIN Rail.
