3VA6225-5KP41-2AA0
Siemens
The Siemens 3VA6225-5KP41-2AA0 is a 4-pole molded-case circuit breaker with a 250A current rating and a 690V voltage rating. It offers a breaking capacity of 35kA at 480V.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

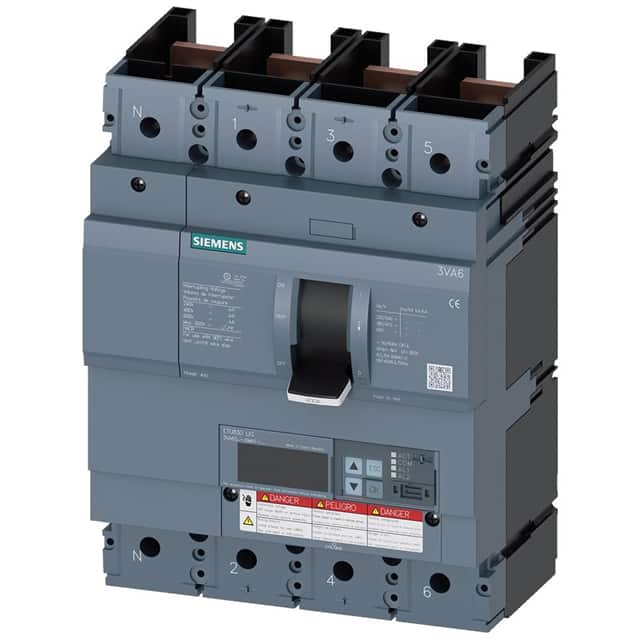

The Siemens 3VA6325-5KM41-2AA0 is a 4-pole molded-case circuit breaker from the SENTRON series, designed for system protection applications. It operates with a rated insulation voltage of 600V and offers an operational current of 250A at temperatures up to 70°C.
This circuit breaker provides robust overcurrent protection with adjustable settings for overload (Ir) and short-circuit (Ii) protection, as well as ground-fault protection (Ig). It boasts a high breaking capacity according to IEC 60947 standards, with an Icu of 55 kA at 415V and 5 kA at 690V. Under UL 489, it offers a breaking capacity of 35 kA at 480V and 18 kA at 600V.
Designed for DIN rail mounting, the 3VA6325-5KM41-2AA0 features a mechanical service life of 15,000 cycles and electrical endurance ratings of up to 6,000 cycles. It includes communication and other measurement functions, making it suitable for advanced monitoring and control systems. The dimensions are 9.8 inches in height, 7.2 inches in width, and 4.3 inches in depth.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operational current rating is 250A at temperatures up to 70°C.
The insulation voltage rating (Ui) is 600V, and the voltage rating is 690V.
According to UL 489, the breaking capacity is 35kA at 480V. According to IEC 60947, the breaking capacity (Icu) is 55kA at 415V and 5kA at 690V.
This is a 4-pole circuit breaker.
The mounting type is DIN Rail.
Yes, it features adjustable overload protection (Ir), short-circuit protection (Ii), and ground-fault protection (Ig), with switchable I2t function.
The dimensions are 9.8 inches (height) x 7.2 inches (width) x 4.3 inches (depth).
