3VA5222-5GC41-0AA0
Siemens
The Siemens 3VA5222-5GC41-0AA0 is a 4-pole molded-case circuit breaker rated for 225A and 690V. It offers LI protection and a breaking capacity of 35kA at 480V.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating |

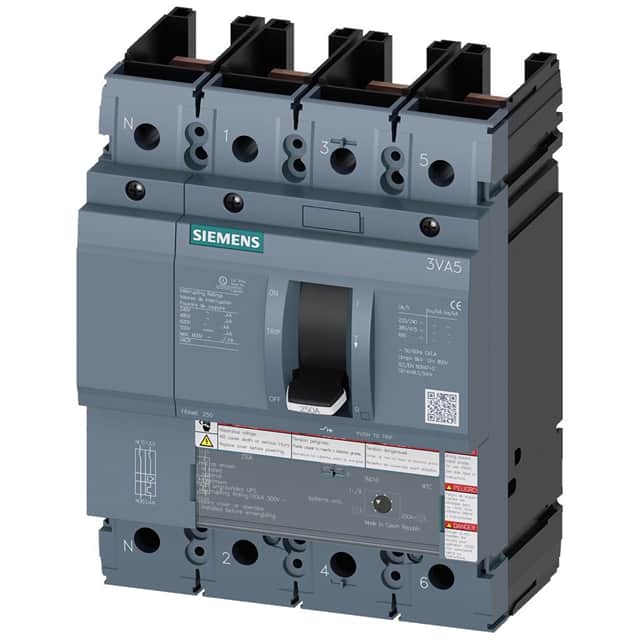

This Siemens 3VA5222-7ED41-0AA0 is a 4-pole molded-case circuit breaker from the 3VA5 series, designed for system protection. It features a permanent rated current of 225A and a maximum rated operational voltage of 690V AC.
The circuit breaker has a breaking capacity of 100kA at 480V according to UL 489 standards and 85kA at 415V according to IEC 60947. The overcurrent release is of type TM210 with LI protection function. It is designed for DIN rail mounting and has a lever actuator.
With a mechanical service life of typically 20,000 switching cycles and electrical endurance ratings of up to 8,000 cycles at 380/415V, this breaker is built for durability. It operates within a temperature range where the operational current is derated at higher temperatures, down to 198A at 70°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum rated operational voltage for this circuit breaker is 690 V AC and 1000 V DC.
The permanent rated current is 225 A, and the operational current at 40°C is also 225 A.
The breaking capacity according to IEC 60947 is 85 kA at 415 V, and according to UL 489 it is 100 kA at 480 V.
This circuit breaker has 4 poles.
This circuit breaker supports DIN Rail mounting.
