Mfr Part #:

31-00127

Available from 1 distributors

Mfr Name: Tensility International

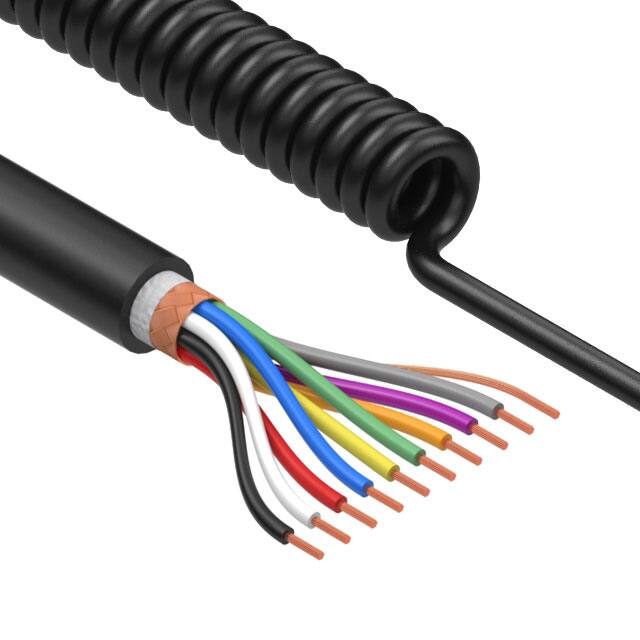

Coiled shielded cable with 9 conductors, 18 AWG, TPU jacket, braid shield, rated 300V 80°C, 2230mm extended length.

✓ Total Stock: 402 pcs

$ Price Range: $78.29

31-00127 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Tokyo Device ✓ Non-Authorised Inventory information	402 pcs On Request	402 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

31-00127 Description

Short technical summary and product information.

The 31-00127 is a coiled shielded multiple conductor cable from Tensility International. It features 9 bare copper conductors, each 18 AWG (65/0.0051" stranding), with a black thermoplastic polyurethane (TPU) jacket. The jacket diameter is 8.99mm with a thickness of 0.800mm. A braided shield with drain wire provides EMI protection. The cable is rated for 300V and 80°C operating temperature, in compliance with UL Style 20280. The retracted length is 600mm and extended length is 2230mm. This cable is halogen free and phthalate free per the datasheet.

31-00127 Quick Information

Product Type: Multiple Conductor Cable

Canonical Name: Coiled Shielded Multiple Conductor Cable, 9 Conductors, 18 AWG, 2230mm Extended Length

Subcategory: Multiple conductor cable

31-00127 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

31-00127 Estimated Pricing

Qty	Low	High
250+	$78.29	$78.29

Estimated market price range - modelled values for guidance only, not live distributor offers.

31-00127 Features

Coiled design with 600mm retracted length.
9 conductors, 18 AWG bare copper.
Braid shield with drain wire.
TPU jacket rated 300V, 80°C.
Halogen and phthalate free.

31-00127 Applications

Robotic and automation cable management.
Industrial control and sensor connections.
Test and measurement equipment.

31-00127 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the wire gauge of this cable?

18 AWG.

What is the voltage rating?

300 V.

What is the operating temperature range?

80°C maximum.

Is the cable shielded?

Yes, it has a braid shield with a drain wire.

What is the extended length of this coiled cable?

2230 mm (7.32 ft).

What is the jacket material?

Thermoplastic Polyurethane (TPU).

Is this cable RoHS compliant?

RoHS3 Compliant (unverified).

Category	Multiple Conductor Cables
Manufacturer Name	Tensility International
Cable Type	Round - Coiled
Conductor Material	Copper, Bare
Conductor Strand	65/0.0051"
Extended Length	2230 mm
Features	Drain Wire
Halogen Free	Halogen free
Jacket (Insulation) Diameter	0.354" (8.99mm)
Jacket (Insulation) Material	Thermoplastic Polyurethane (TPU)
Jacket (Insulation) Thickness	0.0315" (0.800mm)
Jacket Color	Black
Length	7.32' (2.23m)
Number of Conductors	9
Operating Temperature	80°C
Phthalate Free	Phthalate free
Ratings	UL Style 20280
Retracted Length	600 mm
SVHC Present	Not Present
Shield Material	Braided shield
Shield Type	Braid
Voltage	300 V
Wire Gauge	18 AWG
