| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating |

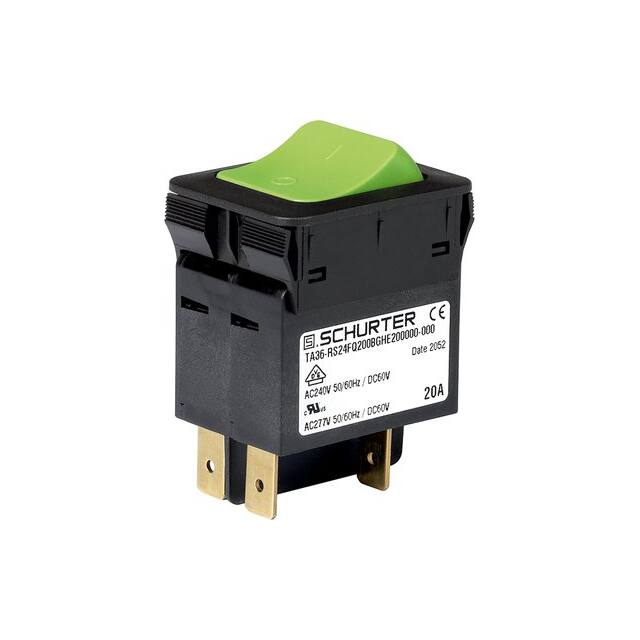

The Schurter Inc. 3-128-216 is a TA36 Rocker series circuit breaker designed for thermal and thermal-magnetic operation. This 2-pole device features a rocker actuation type and a panel mount configuration.
Key electrical specifications include a rated voltage of 240 VAC (IEC) and 277 VAC (UL/CSA), with a DC voltage rating of 32 VDC for single pole and 60 VDC for double pole configurations. The rated current range is from 0.05A to 20A AC, with a magnetic trip capability up to 16A. It offers a conditional short circuit capacity of 2 kA at 240 VAC.
Environmental and mechanical specifications include an IP40 degree of protection on the front side, a mechanical lifetime of 50,000 switching cycles, and an operating temperature range of -30°C to 60°C. The breaker also meets specific overload trip requirements for AC and DC operation under various conditions as defined by IEC and UL/CSA standards.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, construction equipment, cleaning equipment, and commercial/household kitchen appliances.
It is rated for 240 VAC (IEC) and 277 VAC (UL/CSA) for AC, and 32 VDC for 1-pole or 60 VDC for 2-pole.
Panel mount.
-30°C to 60°C.
The AC rated current range is 0.05 to 20 A.
50,000 switching cycles.
