Mfr Part #:

2W04G

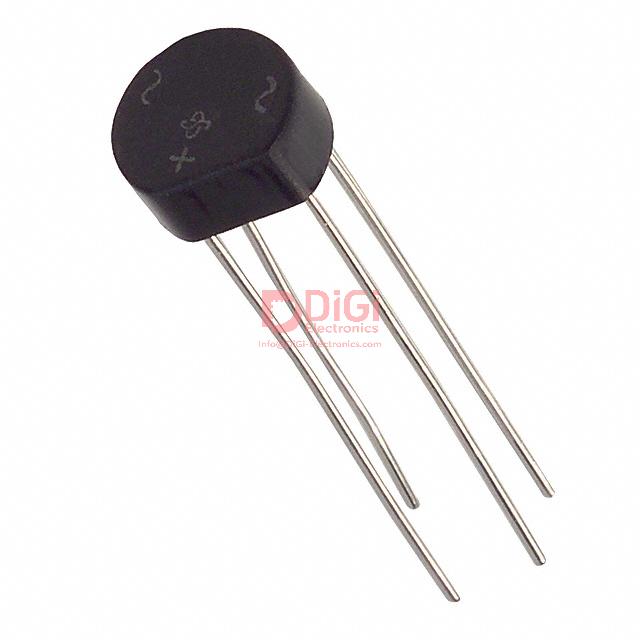

The Vishay General Semiconductor 2W04G is a single-phase bridge rectifier with a 400V peak reverse voltage and 2A average rectified current. It features a through-hole mounting type.

✓ Total Stock: 10 pcs

$ Price Range: $0.99

2W04G Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
ADI/AAR OEM Supply ✓ Non-Authorised Inventory information	10 pcs On Request	10 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

2W04G Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	General Instrument
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature	-55°C ~ 150°C
Technology	Standard

View Similar Products (0)

2W04G Description

Short technical summary and product information.

This Vishay General Semiconductor 2W04G is a single-phase bridge rectifier designed for standard applications. It offers a maximum reverse peak voltage of 400V and an average rectified current of 2A. The forward voltage drop is a maximum of 1.1V at 2A, with a reverse leakage current of 5 µA at 400V.

The operating temperature range for this component is -55°C to 150°C. It is housed in a through-hole package, identified as 4-Circula, and comes in bulk packaging. This bridge rectifier is suitable for various power supply and rectification circuits where standard performance is required.

2W04G Quick Information

Product Type: Bridge Rectifier

Canonical Name: 2W04G Single Phase Bridge Rectifier

Subcategory: Bridge Rectifiers

2W04G Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

2W04G Estimated Pricing

Qty	Low	High
1+	$0.99	$0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

2W04G Features

400V peak reverse voltage rating.
2A average rectified current capacity.
1.1V maximum forward voltage drop.
Wide -55°C to 150°C operating temperature.
Through-hole mounting for easy integration.

2W04G Applications

Ideal for power supply rectification.
Suitable for AC to DC conversion.
Used in general electronic circuits.
Component in voltage doubler circuits.

2W04G FAQs

5 frequently asked questions generated from this part’s specifications.

What is the maximum reverse voltage for the 2W04G bridge rectifier?

The maximum reverse peak voltage for the 2W04G is 400 V.

What is the average rectified current of the 2W04G?

The 2W04G has an average rectified current of 2 A.

What is the forward voltage drop at 2A for the 2W04G?

The maximum forward voltage drop for the 2W04G at 2A is 1.1 V.

What is the operating temperature range of the 2W04G?

The 2W04G operates between -55°C and 150°C.

What type of mounting does the 2W04G use?

The 2W04G uses through-hole mounting.
