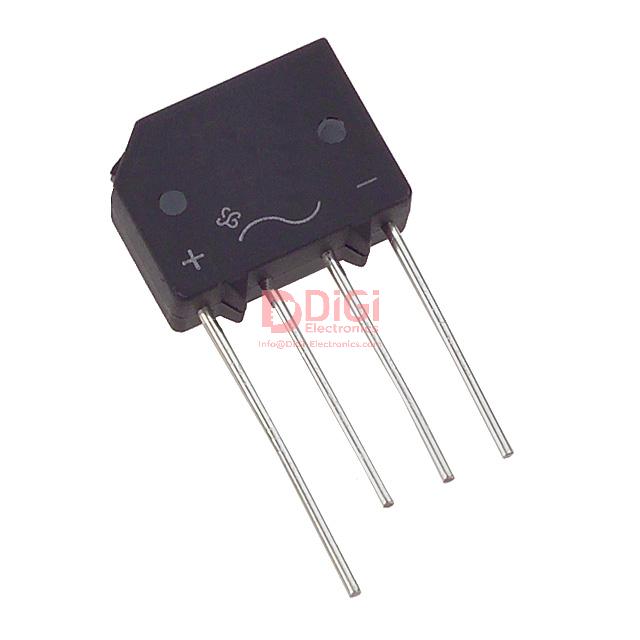

KBP10 The Vishay KBP10M-E4/51 is a single-phase bridge rectifier with a peak reverse voltage of 1kV and an average rectified current of 1.5A. It features a through-hole mounting type.
Mfr Part #:

KBP10

Available from 1 distributors
Mfr Name: G.I
G.I
The Vishay KBP10M-E4/51 is a single-phase bridge rectifier with a peak reverse voltage of 1kV and an average rectified current of 1.5A. It features a through-hole mounting type.
✓ Total Stock: 8 pcs
$ Price Range: $1.44

KBP10 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KBP10 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Average Rectified Current
Diode Type
Forward Voltage
Mounting Type
Operating Temperature
Supplier Device Package
Technology
View Similar Products (0)

KBP10 Description

Short technical summary and product information.

This Vishay General Semiconductor bridge rectifier, part number KBP10M-E4/51, is designed for single-phase applications. It offers a maximum peak reverse voltage of 1kV and can handle an average rectified current of 1.5A. The forward voltage is a maximum of 1.1V at 3.14A, with a typical reverse leakage current of 5 µA at 1000V.



The component operates within a temperature range of -55°C to 150°C. It is housed in a 4-SIP, KBPM package and utilizes a through-hole mounting type, making it suitable for various electronic circuit designs.



Key electrical characteristics include a standard technology and a single-phase diode type. The device is specified with a 1kV peak reverse voltage and 1.5A average rectified current, providing reliable performance in power supply and rectification circuits.

KBP10 Quick Information

Product Type: Bridge Rectifier
Canonical Name: Vishay General Semiconductor - Diodes Division KBP10M-E4/51 Bridge Rectifier
Subcategory: Bridge Rectifiers

KBP10 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

KBP10 Estimated Pricing

Qty Low High
1+ $1.44 $1.44

Estimated market price range - modelled values for guidance only, not live distributor offers.

KBP10 Features

  • 1kV peak reverse voltage rating.
  • 1.5A average rectified current capacity.
  • Low 1.1V maximum forward voltage.
  • Wide -55°C to 150°C operating temperature.
  • Through-hole mounting for easy integration.

KBP10 Applications

  • Suitable for single-phase rectification.
  • Used in power supply circuits.
  • Ideal for general purpose AC to DC conversion.
  • Component for voltage doubler circuits.

KBP10 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the peak reverse voltage for the KBP10M-E4/51?

The KBP10M-E4/51 has a peak reverse voltage of 1 kV.

What is the average rectified current of the KBP10M-E4/51?

The average rectified current for the KBP10M-E4/51 is 1.5 A.

What is the forward voltage of the KBP10M-E4/51 at 3.14A?

The maximum forward voltage for the KBP10M-E4/51 at 3.14A is 1.1 V.

What is the operating temperature range for this bridge rectifier?

The KBP10M-E4/51 operates between -55°C and 150°C.

How is the KBP10M-E4/51 mounted?

The KBP10M-E4/51 is a through-hole mounted component.
