| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
22 pcs
|
22 pcs | On Request | 1 | On Request | On Request | 0028 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Diode Type | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Technology |

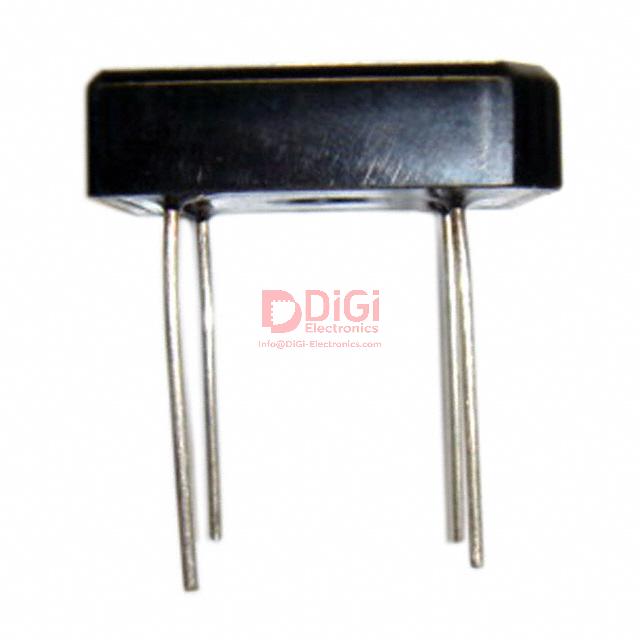

The PB61-BP is a single-phase bridge rectifier manufactured by Micro Commercial Co. This component is designed for standard technology applications and features a peak reverse voltage rating of 100V and an average rectified current of 6A.
Key electrical specifications include a maximum forward voltage of 1.1V at 3A and a reverse leakage current of 10µA at 100V. The operating temperature range for this device is -55°C to 150°C.
The PB61-BP is housed in a 4-Square, PB-6 package and utilizes a through-hole mounting type. This configuration makes it suitable for various electronic circuit designs where robust rectification is required.
Environmental compliance data indicates RoHS3 compliance, an MSL of 1 Unlimited, and REACH unaffected status. However, this compliance data is currently unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.16 | $1.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum peak reverse voltage is 100V.
The typical average rectified current is 6A.
The maximum forward voltage is 1.1V at a forward current of 3A.
The operating junction temperature range is -55°C to 150°C.
The PB61 is available in a 4-Square, PB-6 through-hole package.
The typical reverse leakage current is 10µA at a reverse voltage of 100V.
The PB61 is a single phase bridge rectifier using standard technology.
