| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
346 pcs
|
346 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Barrier Type | |
| Bottom Termination | |
| Color | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Industrial Grade | |
| Insulation Material | |
| Lead Style | |
| Maximum Watts Per Terminal | |
| Maximum Wire Size | |
| Mounting Type | |
| Number of Circuits | |
| Number of Rows | |
| Number of Terminals | |
| Number of Wire Entries | |
| Operating Temperature Range | |
| Pitch | |
| Screw Size | |
| Terminal Block Type | |
| Top Termination | |
| UL | |
| Voltage Rating | |
| Wire Gauge |

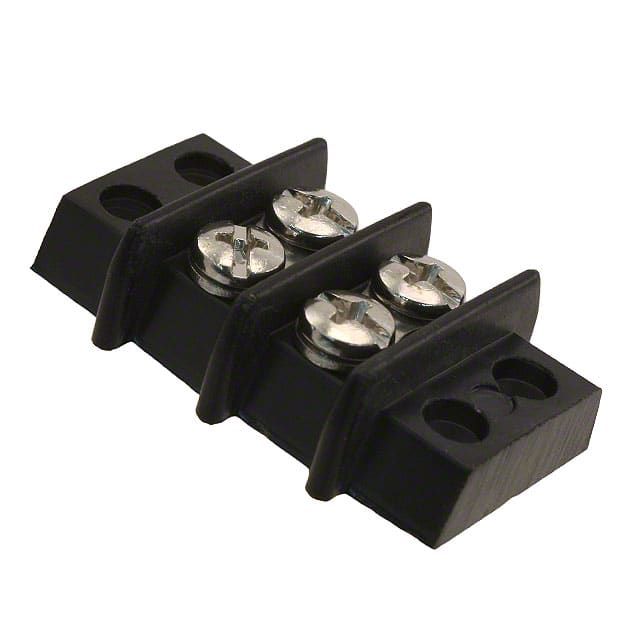

The Cinch 2-140 is a Series 140 barrier block designed for reliable wire termination in industrial and power distribution applications. It features 2 circuits arranged in a double row configuration with a 0.375" (9.53mm) pitch. The block uses 5-40 x 3/16" combination screws for top termination and has a closed bottom design.
Electrical ratings include 15A current and 250V voltage, with maximum power dissipation of 3750W per terminal. The insulation is molded from black phenolic material rated UL 94V-1, and the operating temperature range spans -55°F to +300°F. The block accepts wire sizes up to 16 AWG.
Mechanical features include a flange for chassis or panel mounting. The open bottom design facilitates through-panel wiring. The screw terminals are steel with nickel plating, and solder terminals are brass with electro-tin plating.
This barrier block is suitable for use in control panels, power supplies, and other equipment requiring secure, high-current connections. The double wall barriers provide additional protection against short circuits between adjacent terminals.
The 2-140 has 2 circuits (2 terminals).
The pitch is 9.53mm (0.375").
The current rating is 15A.
The voltage rating is 250V.
The mounting type is chassis or panel, facilitated by the flange feature.
The operating temperature range is -55°F to +300°F.
The maximum wire size is 16 AWG.
