| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Continuous Operating Temperature Max | |
| Continuous Operating Temperature Min | |
| Current Rating (Amps) | |
| Depth | |
| Flammability Rating | |
| Height | |
| Line Side Connection Type | |
| Line Side Connections Per Pole | |
| Line Side Wire | |
| Line Side Wire Range | |
| Load Side Connection Type | |
| Load Side Connections Per Pole | |
| Load Side Wire | |
| Load Side Wire Range | |
| Material | |
| Mounting Type | |
| Net Weight | |
| Number of Levels | |
| Number of Poles | |
| Number of Potentials | |
| Rated Current | |
| Rated Voltage | |
| SVHC Present | |
| Standard Package Quantity | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

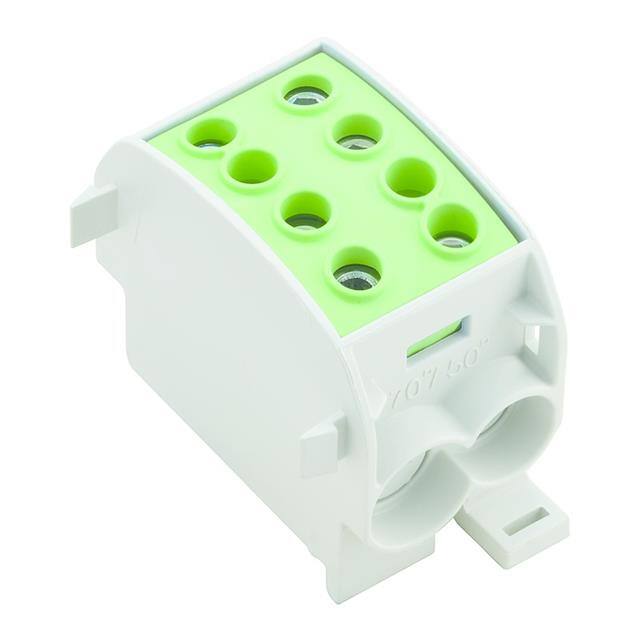

The Weidmüller WPD 103 2X70/2X50 GN (part number 1561790000) is a 1-pole power distribution block designed for building installation wiring. It features a rated current of 300 A and a rated voltage of 1000 V, making it suitable for high-power distribution applications.
This distribution block offers one line-side connection and four load-side connections per pole, accommodating wire ranges from 2/0 to 10 AWG on both sides. All connections use screw terminals for secure and reliable wiring. The block is constructed from Wemid material with a green color and has a UL 94 V-0 flammability rating.
Mounting is snap-on onto a terminal rail or mounting plate. The block measures 32.8 mm wide, 63 mm high, and 53.3 mm deep, with a net weight of 171 g. It supports a continuous operating temperature range from -50 °C to 130 °C.
The rated current is 300 A per the datasheet.
The rated voltage is 1000 V.
It has 4 load-side connections per pole.
It accepts 2/0-10 AWG wire on both line and load sides.
Continuous operating temperature range is -50 °C to 130 °C.
The housing material has a UL 94 V-0 flammability rating.
