| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Cross-hole Diameter | |
| Current Rating | |
| Current Rating (Amps) | |
| Hardware | |
| Head Style | |
| Insulating Material | |
| Lead Style | |
| Material | |
| Mounting Type | |
| Panel Thickness | |
| Plating | |
| Stud Material | |
| Termination | |
| Termination Style | |
| Termination Thread | |
| Type | |
| UL | |
| Wire Gauge |

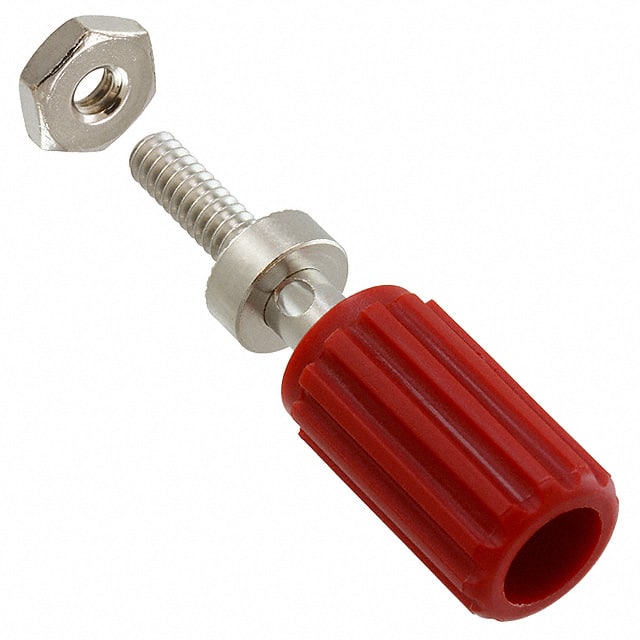

The Cinch Connectivity Solutions 111-0702-001 is a standard insulated binding post designed for panel mount applications. It features a red color-coded knurled head for easy finger tightening. The stud is made of brass per QQ-B-626D with a nickel plating, and the insulating material is Nylon 6/6 per ASTM D4066. The nylon is UL approved for self-extinguishing. A nickel plated nut is included but unassembled. This binding post is rated for 15 amps and accommodates wire up to 12 AWG through a 2.39 mm cross-hole. The threaded termination uses a 6-32 thread. Maximum panel thickness is 7.95 mm. The serrated mounting surface prevents rotation after installation.
15 amps (A).
Up to 12 AWG wire through its 2.39 mm cross-hole.
Up to 7.95 mm (.313 inches).
Brass per QQ-B-626D with nickel plating.
Nylon 6/6 per ASTM D4066, UL approved for self-extinguishing.
