| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | 2026-04-29 06:15:09 |
| Category | |
| Manufacturer Name | |
| (Select First, Then Apply Filters) Compatible Series | |
| Actuator Type | |
| Ambient Air Temperature for Operation | |
| Bezel Material | |
| Cap/Operator or Lens Colour | |
| Electrical Composition Code | |
| IK Degree of Protection | |
| IP Degree of Protection | |
| Illumination | |
| Marking | |
| Mechanical Durability | |
| Nema Degree Of Protection | |
| Operator Profile | |
| Overvoltage Category | |
| Package 1 Height | |
| Package 1 width | |
| Package Weight | |
| Panel Cutout Dimensions | |
| Requires | |
| Resistance to High Pressure Washer | |
| Shape of Signaling Unit Head | |
| Shock Resistance | |
| Type | |
| Type of Operator | |
| Unit Type of Package | |
| Vibration Resistance |

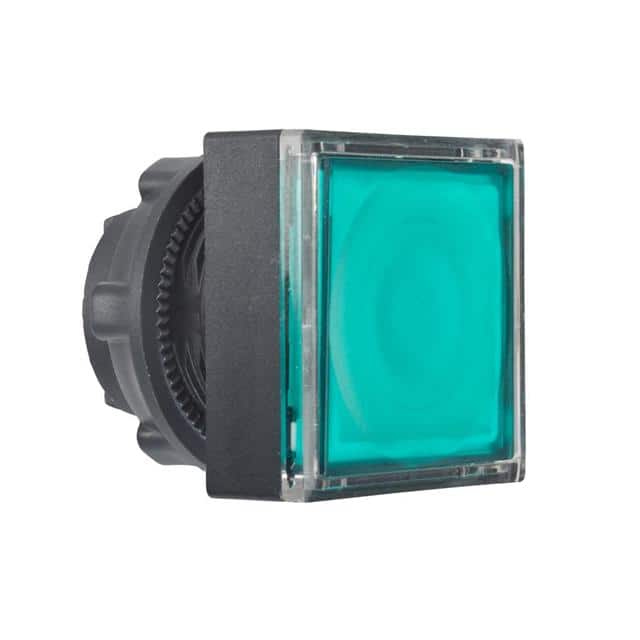

The Schneider Electric ZB5CW333 is a head for an illuminated push button, designed for the Harmony XB5 series. This component features a green, square, flush operator with a spring return mechanism and is unmarked for custom legend insertion.
With a standard 22 mm mounting diameter, this push button head is suitable for panel mounting. It offers robust environmental protection with an IP66 rating, NEMA 13, and NEMA 4X ratings, and an IK05 impact resistance.
The mechanical durability is rated for 10,000,000 cycles. The head is compatible with integral LEDs and requires separate contact blocks and illumination sources. Electrical composition codes like M1, M2, M6, M10, MF1, and MR1 are supported, indicating various configurations for front and rear mounting with integral LEDs or transformers.
This component operates within an ambient air temperature range of -40 to 70 °C and has a high-pressure washer resistance. It is certified by DNV, LROS, BV, UL Listed, CSA, and GL.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operator type is spring return.
The panel cutout diameter is 22 mm.
The IP degree of protection is IP66.
The operating temperature range is -40 to 70 °C.
Yes, the RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1.
