| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | 2026-04-29 06:15:09 |
| Category | |
| Manufacturer Name | |
| (Select First, Then Apply Filters) Compatible Series | |
| Actuator Type | |
| Illumination | |
| Lead Spacing | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Requires | |
| Standards | |
| Storage Temperature | |
| Type |

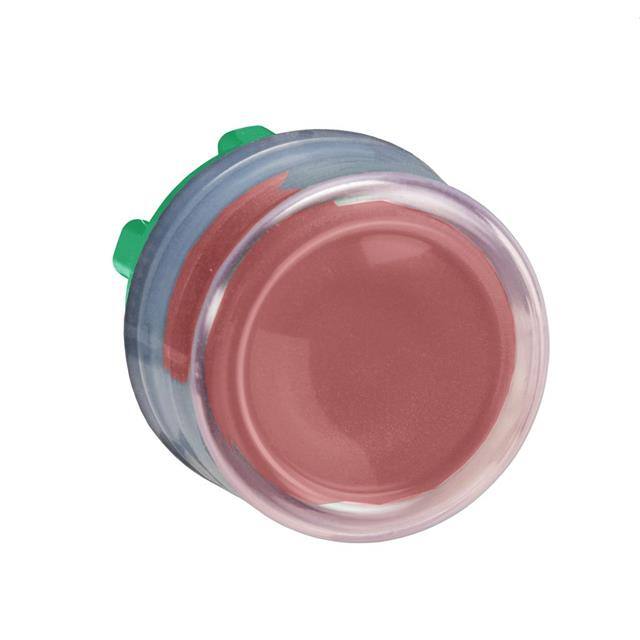

This Schneider Electric ZB5AP4 is a push button head from the Harmony XB5 series, designed for non-illuminated applications. It features a round, projecting red operator with a clear boot and a dark grey plastic bezel. The head requires separate contact blocks to complete the assembly.
With a standard 22mm mounting diameter, this component is suitable for panel cutouts of the same size. It offers robust environmental protection with an IP66 rating, NEMA 13, and NEMA 4X ratings, and an IK03 impact resistance. The operating temperature range is -40°C to 70°C, and it has a mechanical durability of 10,000,000 cycles.
This push button head complies with various industry standards including EN/IEC 60947-5-1, UL 508, and CSA C22.2 No 14. It is designed for use with specific station names like XALD and XALK cut-outs, and its electrical composition codes (C1, C2, C11, C15, SF1, SR1) indicate various mounting configurations.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The mounting diameter is 22 mm.
The operating temperature range is -40 to 70 °C.
The IP degree of protection is IP66.
The mechanical durability is 10,000,000 cycles.
No, the ZB5AP4 is a non-illuminated push button head.
