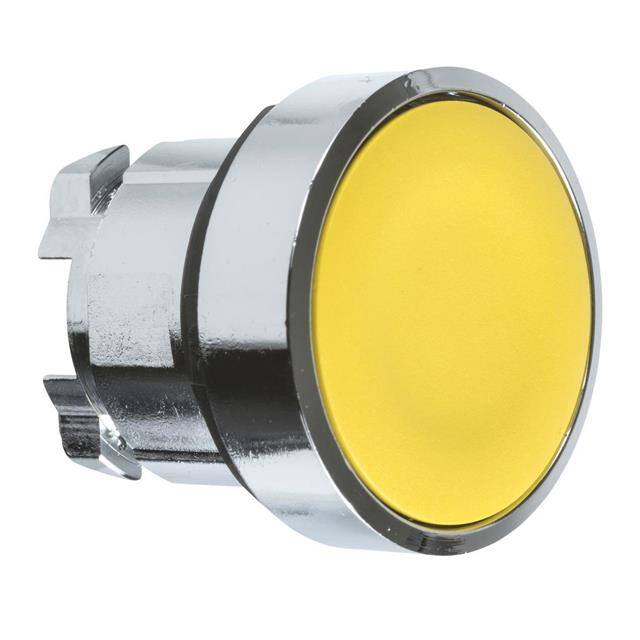

The Schneider Electric ZB4BH05 is a component head for non-illuminated pushbuttons within the Harmony XB4 series. Designed for a 22mm panel cutout, this head features a yellow, flush, unmarked operator profile and a durable chromium-plated metal bezel.
This pushbutton head offers significant environmental protection with IP66, IP67, IP69, and IP69K ratings, as well as NEMA 13 and NEMA 4X protection. It is built for mechanical durability, rated for 2,000,000 cycles. The operating temperature range is -40°C to 70°C, suitable for demanding environments.
Key specifications include a mounting diameter of 22mm and a push-push operator type. The head is compatible with Schneider's Harmony XB4 series and requires separate contact block(s) for full functionality. Electrical composition codes C11, C15, and C9 are supported.
Standards compliance includes EN/IEC 60947-5-5, EN/IEC 60947-5-4, UL 508, CSA C22.2 No 14, and others, indicating suitability for various industrial applications. The product certifications include DNV, LROS, GL, CSA, BV, and UL Listed.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The mounting diameter is 22 mm.
The operating temperature range is -40°C to 70°C.
The IP degree of protection is IP66, IP67, IP69, and IP69K.
The mechanical durability is 2,000,000 cycles.
Yes, it is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
