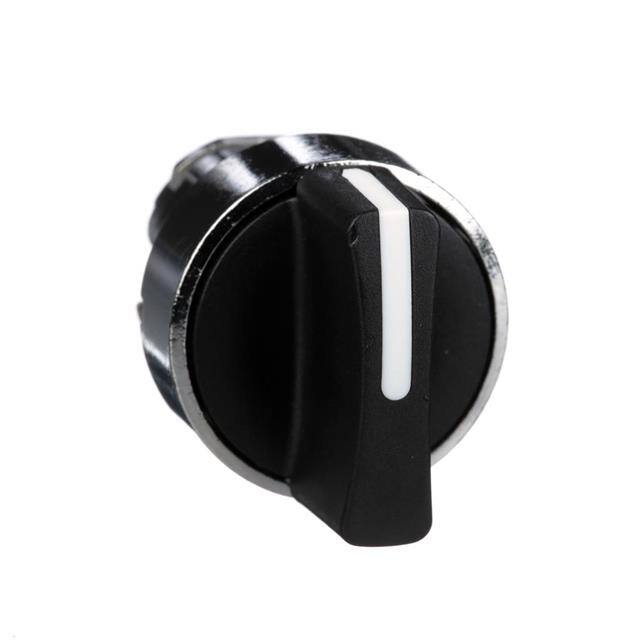

The Schneider Electric ZB4BD3 is a selector switch operating head designed for use with the Harmony XB4 series. This maintained switch head features a standard round shape with a black standard handle operator profile. It requires contact blocks for full functionality and is designed for a 22mm panel cutout.
The construction includes a durable chromium-plated metal bezel, ensuring robustness in industrial environments. The operator provides 3 positions with a +/- 45° angle. The head is rated for high-pressure washing and offers significant mechanical durability with 1,000,000 cycles. Environmental protection is provided with IP67, IP69, IP69K, NEMA 13, and NEMA 4X ratings, along with an IK06 impact resistance.
This component complies with various international standards including EN/IEC 60947 series, UL 508, and CSA C22.2 No 14. It operates within a wide temperature range of -40°C to 70°C and is protected against vibration and shock.
Key specifications include a 22mm mounting diameter, maintained operator action, and non-illuminated design. The electrical composition codes C3 through C8 and C11 are supported, indicating compatibility with different contact block configurations.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ZB4BD3 selector switch head has a mounting diameter of 22mm.
The ZB4BD3 selector switch head features a maintained operator action.
The ZB4BD3 selector switch head can operate between -40°C and 70°C.
The ZB4BD3 selector switch head has IP67, IP69, and IP69K ratings.
The ZB4BD3 selector switch head has a mechanical durability of 1,000,000 cycles.
