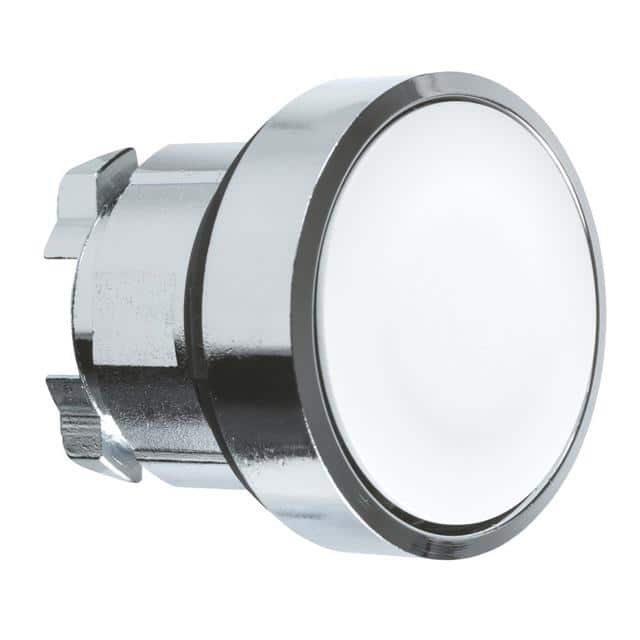

The Schneider Electric ZB4BA1 is a component for non-illuminated push-button devices within the Harmony XB4 range. This push button head is designed for flush mounting and features a round shape with a white, unmarked operator profile. The bezel is constructed from chromium-plated metal, providing durability.
Key specifications include a 22mm mounting diameter, making it compatible with standard panel cutouts. The operator type is spring return, and it is non-illuminated. The mechanical durability is rated for 10,000,000 cycles.
Environmentally, the ZB4BA1 offers robust protection with an IP66, IP67, IP69, and IP69K degree of protection, along with NEMA 13 and NEMA 4X ratings. It operates within an ambient temperature range of -40 to 70°C. The product complies with various international standards including EN/IEC 60947 series and UL 508.
This component requires separate contact blocks for full functionality. It is presented as a basic element for building configurable switch units.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The mounting diameter for the ZB4BA1 is 22mm.
The ZB4BA1 uses a spring return operator.
No, the ZB4BA1 is a non-illuminated push button head.
The ZB4BA1 has IP66, IP67, IP69, and IP69K degrees of protection, as well as NEMA 13 and NEMA 4X ratings.
The operating temperature range for the ZB4BA1 is -40 to 70°C.
The ZB4BA1 complies with EN/IEC 60947-1, EN/IEC 60947-5-4, UL 508, EN/IEC 60947-5-5, JIS C8201-5-1, CSA C22.2 No 14, EN/IEC 60947-5-1, and JIS C8201-1.
