| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CCT (K) | |
| Color | |
| Current | |
| Flux @ 85ﾂｰC, Current | |
| Height | |
| Length | |
| Lumens | |
| Mounting Type | |
| Tape & Reel | |
| Viewing Angle | |
| Voltage | |
| Width |

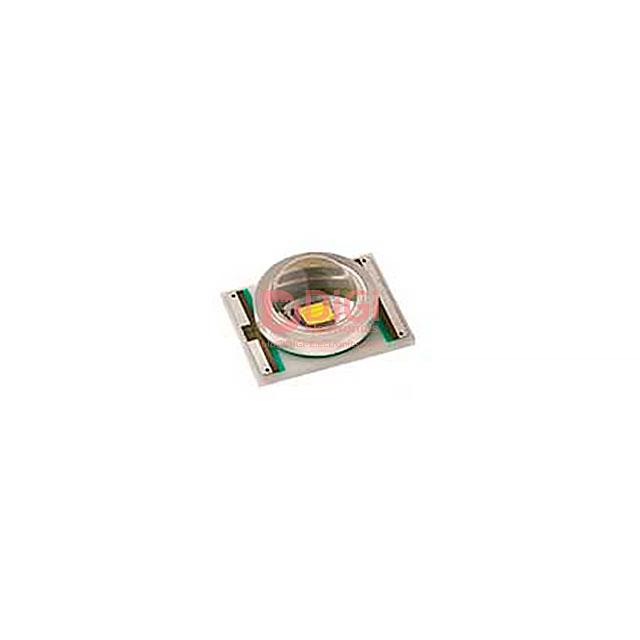

This CreeLED, Inc. XTEAWT-E0-0000-000000KE5 is a neutral white LED designed for various lighting applications. It features a correlated color temperature of 4000K, providing a neutral white light output.
The LED operates with a typical forward voltage of 2.77V and a test current of 350mA, delivering a luminous flux of 160lm at 85°C. Its luminous efficacy is rated at 165 lm/W, indicating efficient light conversion. The viewing angle is broad at 115°.
Mechanically, the component has dimensions of 3.45mm in length and width, and a height of 2.54mm. It is designed for surface mounting and comes in a 1414 (3535 Metric) package, typically supplied on tape and reel.
The RoHS status is compliant, and the Moisture Sensitivity Level (MSL) is 1, indicating unlimited shelf life under recommended conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage is 2.77V.
The typical operating current is 350mA.
The CCT is 4000K.
The viewing angle is 115°.
The LED has dimensions of 3.45mm in length and width, and a height of 2.54mm.
It is designed for surface mounting.
The RoHS status is compliant.
