| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,570 pcs
|
1570 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Resonator | |
| Current | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

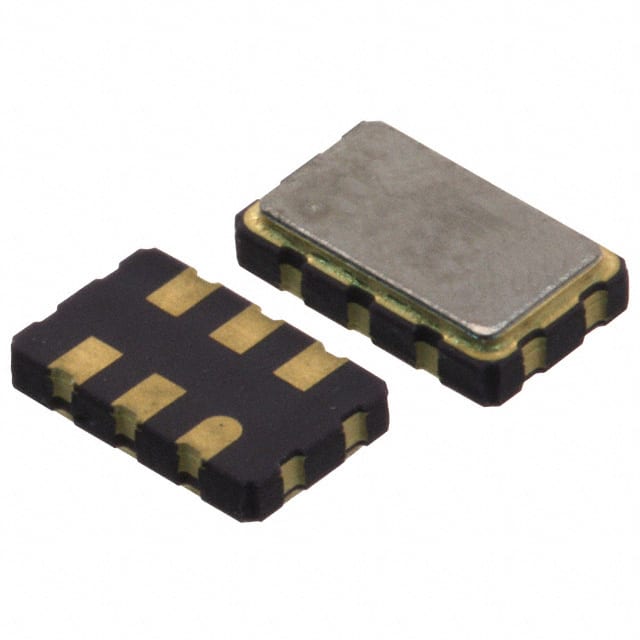

The Renesas XLH536048.000000I is a surface-mount crystal oscillator (XO) operating at a nominal frequency of 48 MHz. It features HCMOS output logic and a 3.3V supply voltage, with a typical supply current of 35mA. The oscillator provides a frequency stability of ±25ppm over its operating temperature range of -40°C to 85°C.
This device includes an enable/disable function for power management and is housed in a compact 6-SMD, No Lead package measuring 5.15mm x 3.35mm with a height of 1.40mm. The surface-mount design makes it suitable for automated assembly in high-density PCB layouts.
Typical applications include clock generation for microcontrollers, FPGAs, and communication interfaces where a stable 48 MHz reference is required. The wide temperature range supports industrial and extended-temperature environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.38 | $1.38 |
| 10+ | $1.21 | $1.21 |
| 25+ | $1.09 | $1.09 |
| 100+ | $1.05 | $1.05 |
| 250+ | $0.99 | $0.99 |
| 500+ | $0.95 | $0.95 |
| 1,000+ | $0.95 | $0.95 |
| 2,000+ | $0.87 | $0.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage is 3.3V nominal.
It comes in a 6-SMD, No Lead package with dimensions 5.15mm x 3.35mm x 1.40mm.
The operating temperature range is -40°C to 85°C.
The RoHS status is listed as RoHS3 Compliant, but this is unverified.
It provides HCMOS output.
Frequency stability is ±25ppm.
Yes, it has an enable/disable function.
