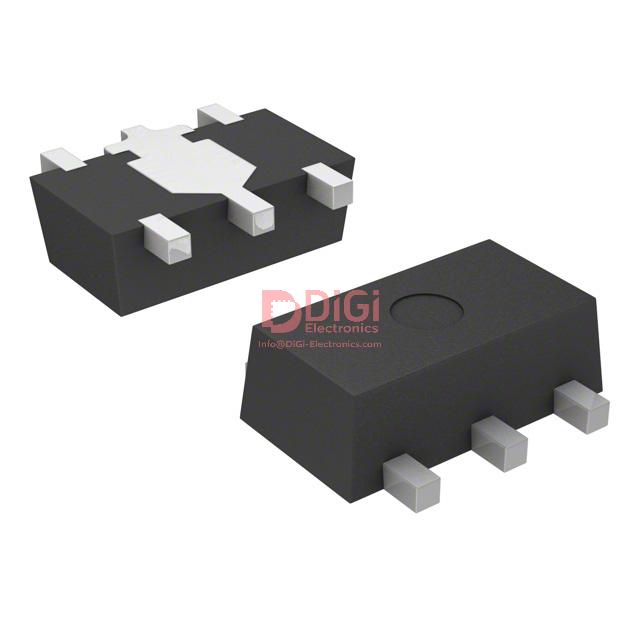

XC6601A11BMR-G The Torex Semiconductor XC6601A11BMR-G is a fixed output linear voltage regulator. It provides a 1.15V output voltage and can supply up to 700mA of current.
Mfr Part #:

XC6601A11BMR-G

Available from 1 distributors
Mfr Name: Torex Semiconductor
Torex Semiconductor
The Torex Semiconductor XC6601A11BMR-G is a fixed output linear voltage regulator. It provides a 1.15V output voltage and can supply up to 700mA of current.
✓ Total Stock: 55,500 pcs
$ Price Range: $0.28

XC6601A11BMR-G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
55,500 pcs
On Request
55500 pcs On Request 1 On Request On Request 17+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

XC6601A11BMR-G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Control Features
Current
Mounting Type
Number of Regulators
Operating Temperature
Output Configuration
Output Type
PSRR
Protection Features
Supplier Device Package
Tape & Reel
Voltage
Voltage Dropout (Max)
View Similar Products (0)

XC6601A11BMR-G Description

Short technical summary and product information.

The Torex Semiconductor XC6601A11BMR-G is a linear voltage regulator designed for positive voltage regulation. It features a fixed output voltage of 1.15V and a maximum output current of 700mA. The device operates with an input voltage up to 6V and has a low dropout voltage of 0.2V at 300mA.



Key electrical characteristics include protection features such as over current, over temperature, soft start, and under voltage lockout (UVLO). It also offers a Power Supply Rejection Ratio (PSRR) of 60dB to 40dB from 1kHz, indicating good noise filtering capabilities. The regulator is controlled via an enable pin.



This component is housed in a SOT-25 package, also referred to as SC-74A or SOT-753, and is designed for surface mount applications. It operates within a temperature range of -40°C to 85°C, making it suitable for a variety of environmental conditions.

XC6601A11BMR-G Quick Information

Product Type: Linear Voltage Regulator
Series: XC6601
Canonical Name: Torex Semiconductor XC6601A11BMR-G Linear Voltage Regulator
Subcategory: Linear

XC6601A11BMR-G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

XC6601A11BMR-G Estimated Pricing

Qty Low High
1+ $0.28 $0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

XC6601A11BMR-G Features

  • Fixed 1.15V positive output voltage.
  • Maximum output current of 700mA.
  • Low dropout voltage of 0.2V at 300mA.
  • Includes over current and over temperature protection.
  • Surface mount SOT-25 package.

XC6601A11BMR-G Applications

  • Suitable for general power regulation.
  • Used in battery-powered devices.
  • Ideal for noise-sensitive applications.
  • Applications requiring stable voltage output.

XC6601A11BMR-G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of XC6601A11BMR-G?

The fixed output voltage is 3.35V.

How much output current can XC6601A11BMR-G supply?

It can deliver up to 700mA.

What is the maximum input voltage?

The maximum input voltage is 6V.

What is the dropout voltage?

The maximum dropout voltage is 0.2V at a 300mA load.

What is the operating temperature range?

It operates from -40°C to 85°C.

What protection features are included?

The device includes overcurrent, over-temperature, soft start, and under-voltage lockout (UVLO).

What package is XC6601A11BMR-G available in?

It is available in SOT-25, also known as SC-74A / SOT-753.
