| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | 03+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Mounting Type |

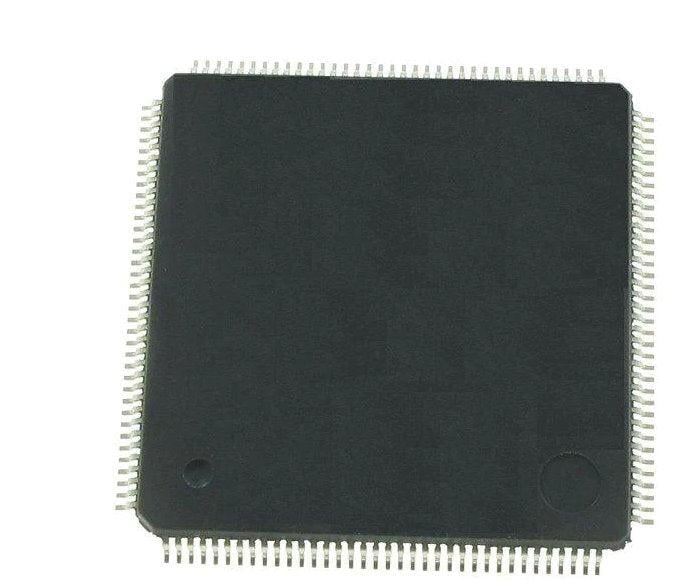

The Xilinx XC2S15-5VQ100C is part of the Spartan II family of Field-Programmable Gate Arrays (FPGAs), designed as a cost-effective alternative to mask-programmed ASICs. This device offers densities up to 200,000 system gates and supports system performance up to 200 MHz.
Key features include SelectRAM hierarchical memory with configurable 4K bit block RAM and 16 bits/LUT distributed RAM, totaling up to 56K bits of block RAM and 75,264 bits of distributed RAM. It supports 16 selectable I/O standards and includes four dedicated DLLs for advanced clock control. The FPGA utilizes a 0.18 micron process technology, with core logic powered at 2.5V and I/Os configurable at 1.5V, 2.5V, or 3.3V.
Packaged in a VQ100 surface-mount package, the XC2S15-5VQ100C is suitable for various applications requiring flexible, reprogrammable logic. Its design allows for in-field upgrades, avoiding the long development cycles and risks associated with conventional ASICs. The device is fully supported by the Xilinx ISE development system.
VQ100 package.
Core voltage is 2.5V. I/O voltage can be 1.5V, 2.5V, or 3.3V.
200 MHz.
200,000 system gates.
5,292 logic cells.
56K bits.
75,264 bits.
