| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

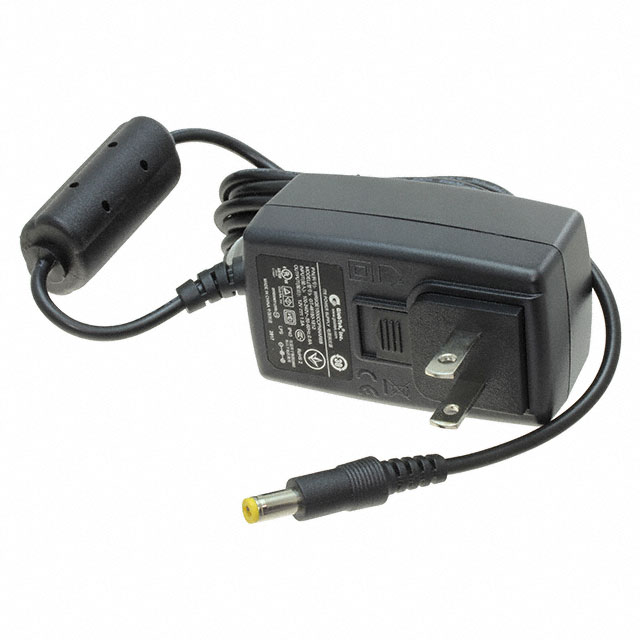

The GlobTek WR9QE1500CCPNNAR6B is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 12V output with a current rating of 1.5A, providing a total power of 18W. This adapter meets the stringent Level VI energy efficiency requirements, ensuring reduced power consumption.
Featuring a compact design with dimensions of 74.0mm x 43.5mm x 34.0mm, it is suitable for various space-constrained applications. The adapter utilizes a multi-blade input connector (sold separately) and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 11.0mm) with positive center polarization. It operates within a temperature range of 0°C to 40°C and has a low no-load power consumption of 75mW maximum.
The WR9QE1500CCPNNAR6B is compliant with international standards including 60950-1 and 62368-1, and holds numerous approval agency certifications such as CE, cULus, FCC, and PSE, making it suitable for international use. The cord length is 72 inches (1.83m).
The WR9QE1500CCPNNAR6B adapter provides a 12V output at 1.5A.
The power rating for the WR9QE1500CCPNNAR6B adapter is 18W.
The WR9QE1500CCPNNAR6B adapter meets Level VI efficiency standards.
The operating temperature range for the WR9QE1500CCPNNAR6B adapter is 0°C to 40°C.
The adapter uses a barrel plug output connector with dimensions 2.1mm I.D. x 5.5mm O.D. x 11.0mm and positive center polarization.
The dimensions are 74.0mm in length, 43.5mm in width, and 34.0mm in height.
