| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

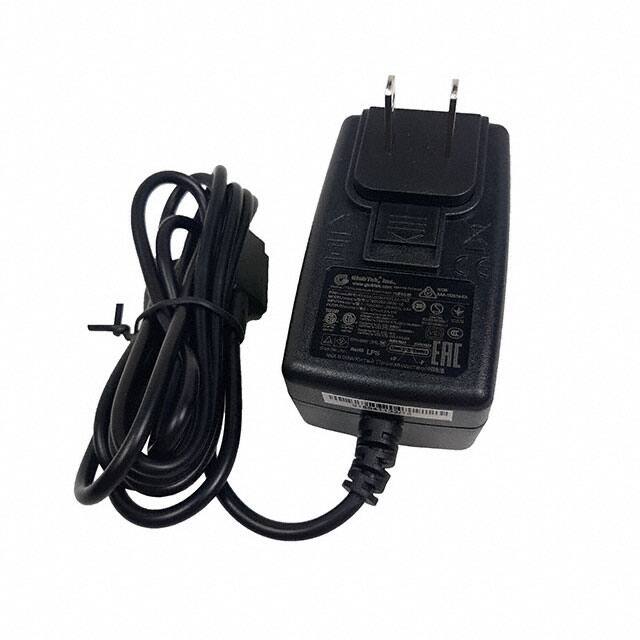

The GlobTek WR9QA1200MAG2C2A-R6B is a regulated switchmode AC-DC power supply designed for wall plug-in applications. It operates with an input voltage range of 100-240V AC at 50-60 Hz, making it suitable for international use.
This adapter delivers a stable 5V output at 1.2A, totaling 6W of power. It features Level VI efficiency, ensuring reduced energy consumption. The unit is designed for household appliances, ITE (Commercial), and medical applications.
Key specifications include a compact form factor with dimensions of 43.5mm x 74.0mm x 36.8mm. It utilizes a multi-blade input connector, sold separately, and a 2-pole magnetic connector for output. The operating temperature range is -20°C to 50°C.
The WR9QA1200MAG2C2A-R6B holds numerous approvals, including CCC, FCC, ETL, CE, and UL, among others, indicating compliance with various international safety and performance standards.
100-240 VAC at 50-60 Hz.
5V DC at 1.2A.
Level VI, with maximum no load power consumption of 75 mW.
-20°C to 50°C.
BSI, CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, S-Mark, UKRSepro, UL, VCCI.
2 Pole Magnetic connector.
Yes, it is listed for use in household appliances, ITE commercial equipment, and medical devices.
