| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
75,000 pcs
|
75000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance |

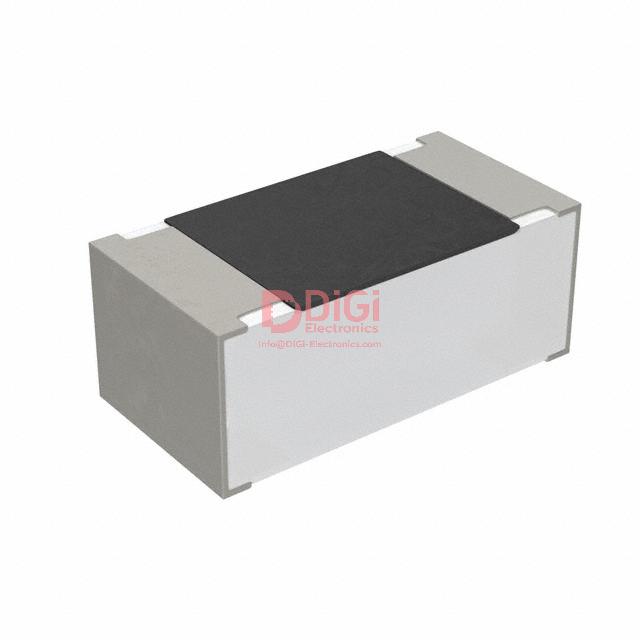

The Walsin Technology WR04X220JTL is a surface mount chip resistor designed for various electronic applications. It offers a resistance value of 22 Ohms with a tight tolerance of ±5%, ensuring precise circuit performance.
This resistor operates with a power rating of 0.063W (1/16W) and is constructed using thick film technology. It has a wide operating temperature range from -55°C to 155°C and a temperature coefficient of ±100ppm/°C.
The component comes in a compact 0402 (1005 Metric) package, measuring 0.039" L x 0.020" W (1.00mm x 0.50mm) with a maximum seated height of 0.016" (0.40mm). It features two terminations and is suitable for surface mounting.
This WR series resistor is an active component with a standard package of Cut Tape (CT) & Digi-Reel®.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The WR04X220JTL resistor has a resistance value of 22 Ohms.
The tolerance of the WR04X220JTL resistor is ±5%.
The power rating of the WR04X220JTL resistor is 0.063W, or 1/16W.
The WR04X220JTL resistor operates within a temperature range of -55°C to 155°C.
The WR04X220JTL resistor is supplied in a 0402 (1005 Metric) package.
