Mfr Part #:

WAB400M12BM3

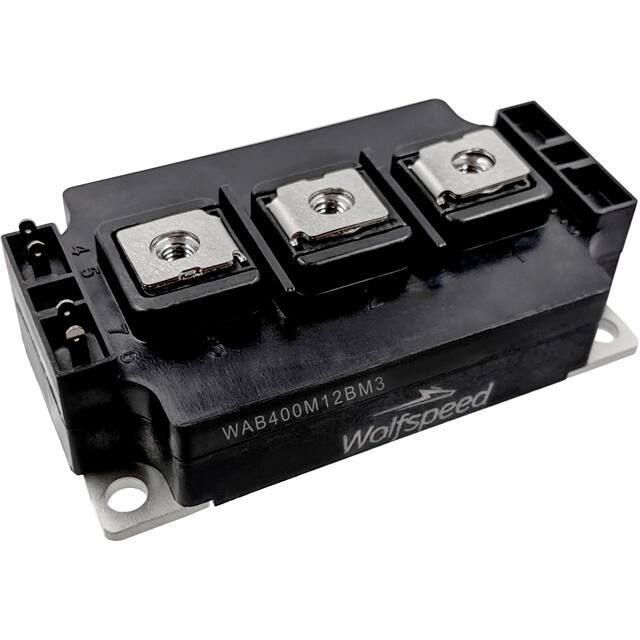

Name: WAB400M12BM3
Brand: WOLFSPEED
SKU: WAB400M12BM3

Mfr Name: WOLFSPEED

Description:

1200 V, 400 A HALF-BRIDGE MODULE

Stock on Request

WAB400M12BM3 Description

Short technical summary and product information.

1200 V, 400 A HALF-BRIDGE MODULE

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Transistors - FETs, MOSFETs - Arrays
Manufacturer Name	WOLFSPEED
Configuration	2 N-Channel (Half Bridge)
Current	468A (Tc)
Drain to Source Voltage (Vdss)	1200V (1.2kV)
Gate Charge (Qg) (Max) @ Vgs	1040nC @ 15V
Input Capacitance (Ciss) (Max) @ Vds	29700pF @ 800V
Mounting Type	Chassis Mount
Operating Temperature	-40°C ~ 175°C (TJ)
Rds On (Max) @ Id, Vgs	4.25mOhm @ 400A, 15V
Supplier Device Package	Module
Technology	Silicon Carbide (SiC)
Vgs(th) (Max) @ Id	3.6V @ 106mA
