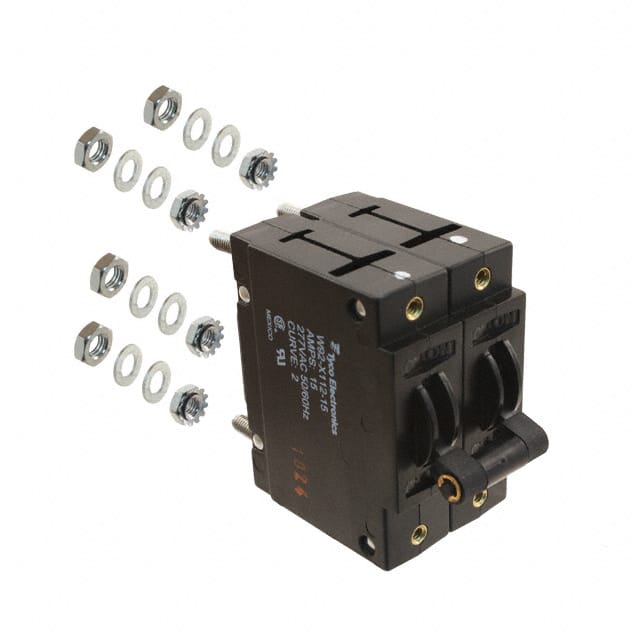

W92-X112-15 The TE Connectivity W92-X112-15 is a 2-pole circuit breaker featuring a magnetic-hydraulic delay mechanism. It is rated for 15A and 277V.
Mfr Part #:

W92-X112-15

Mfr Name: TE Connectivity
TE Connectivity
The TE Connectivity W92-X112-15 is a 2-pole circuit breaker featuring a magnetic-hydraulic delay mechanism. It is rated for 15A and 277V.
Stock on Request

W92-X112-15 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Breaker Type
Current Rating
Current Rating (Amps)
Mounting Type
Number of Poles
SVHC Present
Voltage Rating
View Similar Products (0)

W92-X112-15 Description

Short technical summary and product information.

This TE Connectivity W92-X112-15 is a 2-pole circuit breaker designed for panel mounting. It utilizes a magnetic-hydraulic delay mechanism for reliable operation.



The breaker has a current rating of 15A and a voltage rating of 277V. It features a lever actuator for easy operation.



This component is suitable for applications requiring protection against overcurrents and short circuits within its specified electrical ratings. Its panel mount design facilitates integration into control panels and electrical enclosures.

W92-X112-15 Quick Information

Product Type: Circuit Breaker
Series: W92
Canonical Name: TE Connectivity W92-X112-15 Magnetic-Hydraulic Circuit Breaker
Subcategory: Circuit Breaker

W92-X112-15 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

W92-X112-15 Features

  • 15A current rating for circuit protection.
  • 277V voltage rating for electrical systems.
  • Magnetic-hydraulic delay for reliable tripping.
  • Panel mount design for easy installation.
  • 2-pole configuration for circuit isolation.

W92-X112-15 Applications

  • Used in industrial control panels.
  • Suitable for power distribution units.
  • Applicable in electrical enclosure systems.
  • Provides overcurrent protection.

W92-X112-15 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the W92-X112-15 circuit breaker?

The current rating is 15A.

What is the voltage rating for the W92-X112-15?

The voltage rating is 277V.

What type of breaker is the W92-X112-15?

It is a Magnetic (Hydraulic Delay) type breaker.

How many poles does the W92-X112-15 circuit breaker have?

It has 2 poles.

What is the mounting type for this circuit breaker?

The mounting type is Panel Mount.

What is the RoHS status of the W92-X112-15?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The MSL is 1 Unlimited.

W92-X112-15 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
IULDHK11-1-62-15.0-C-01
IULDHK11-1-62-15.0-C-01
Sensata
The Sensata IULDHK11-1-62-15.0-C-01 is a magnetic hydraulic delay circuit breaker. It offers a 15A current rating and a 277V voltage rating.
View Part
AA2-B0-22-615-5D1-C
AA2-B0-22-615-5D1-C
Littelfuse Inc.
The Littelfuse Inc. AA2-B0-22-615-5D1-C is a 2-pole circuit breaker designed for panel mounting. It features a magnetic hydraulic delay mechanism.
View Part
AA2-B0-46-615-5B1-C
AA2-B0-46-615-5B1-C
Littelfuse Inc.
The Littelfuse Inc. AA2-B0-46-615-5B1-C is a 2-pole magnetic hydraulic delay circuit breaker. It features a panel mount design and a 15A current rating.
View Part
AA2-B0-24-615-3B1-C
AA2-B0-24-615-3B1-C
Littelfuse Inc.
The Littelfuse Inc. AA2-B0-24-615-3B1-C is a circuit breaker designed for panel mounting. It features a 15A current rating and a 277V voltage rating.
View Part
