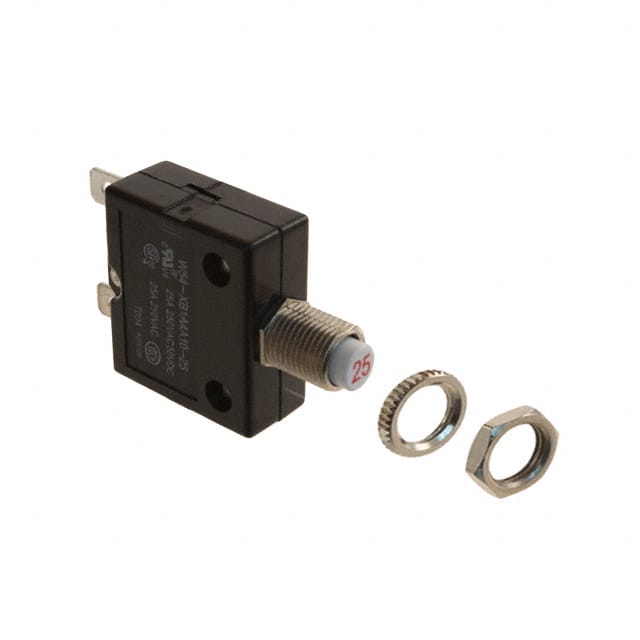

W54-XB1A4A10-25 The TE Connectivity W54-XB1A4A10-25 is a thermal circuit breaker designed for panel mounting. It features a 25A current rating and a 250V voltage rating.
Mfr Part #:

W54-XB1A4A10-25

Mfr Name: TE Connectivity
TE Connectivity
The TE Connectivity W54-XB1A4A10-25 is a thermal circuit breaker designed for panel mounting. It features a 25A current rating and a 250V voltage rating.
Stock on Request

W54-XB1A4A10-25 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Breaker Type
Current Rating
Current Rating (Amps)
Mounting Type
Number of Poles
SVHC Present
Voltage Rating
View Similar Products (0)

W54-XB1A4A10-25 Description

Short technical summary and product information.

This TE Connectivity W54-XB1A4A10-25 is a thermal circuit breaker with a current rating of 25A and a voltage rating of 250V. It is designed for panel mounting and features a push-to-reset actuator.



The breaker type is thermal, indicating its operation is based on heat generated by overcurrent. It has a single pole configuration.



The component is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1, meaning it has unlimited shelf life under standard conditions. REACH status is unaffected.



This circuit breaker is suitable for applications requiring reliable overcurrent protection in a panel-mounted configuration.

W54-XB1A4A10-25 Quick Information

Product Type: Circuit Breaker
Series: W54
Canonical Name: TE Connectivity W54-XB1A4A10-25 Thermal Circuit Breaker
Subcategory: Thermal

W54-XB1A4A10-25 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

W54-XB1A4A10-25 Features

  • 25A current rating for overcurrent protection.
  • 250V voltage rating for AC circuits.
  • Thermal breaker type for reliable operation.
  • Panel mount design for easy integration.
  • Push-to-reset actuator for manual reset.

W54-XB1A4A10-25 Applications

  • Ideal for industrial control panels.
  • Suitable for power distribution units.
  • Used in equipment requiring circuit protection.
  • Applicable in machinery safety systems.

W54-XB1A4A10-25 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the W54-XB1A4A10-25 circuit breaker?

The current rating is 25A.

What is the voltage rating for this circuit breaker?

The voltage rating is 250V.

What type of circuit breaker is the W54-XB1A4A10-25?

It is a thermal circuit breaker.

How is the W54-XB1A4A10-25 circuit breaker mounted?

It is designed for panel mounting.

What is the RoHS status of this component?

It is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The MSL is 1 Unlimited.

W54-XB1A4A10-25 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
TS-701-HT-25
TS-701-HT-25
Schurter Inc.
The Schurter Inc. TS-701-HT-25 is a thermal circuit breaker designed for panel mounting. It features a 25A current rating and a 250VAC voltage rating.
View Part
CLB-253-12CNN-W-D
CLB-253-12CNN-W-D
Littelfuse Inc.
The Littelfuse Inc. CLB-253-12CNN-W-D is a thermal circuit breaker designed for panel mounting. It features a 25A current rating and a 250V voltage rating.
View Part
CLB-253-11A2N-B-F/25
CLB-253-11A2N-B-F/25
Littelfuse Inc.
Littelfuse CLB-253-11A2N-B-F/25 is a 1-pole thermal circuit breaker rated for 25A at 250V. It features a push-to-reset actuator and panel mount design.
View Part
CLB-253-00DNN-W-F/25
CLB-253-00DNN-W-F/25
Littelfuse Inc.
The Littelfuse Inc. CLB-253-00DNN-W-F/25 is a thermal circuit breaker designed for panel mounting. It features a 25A current rating and a 250V voltage rating.
View Part
