| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
620 pcs
|
620 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current - Saturation (ISAT) | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Inductance Frequency - Test | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

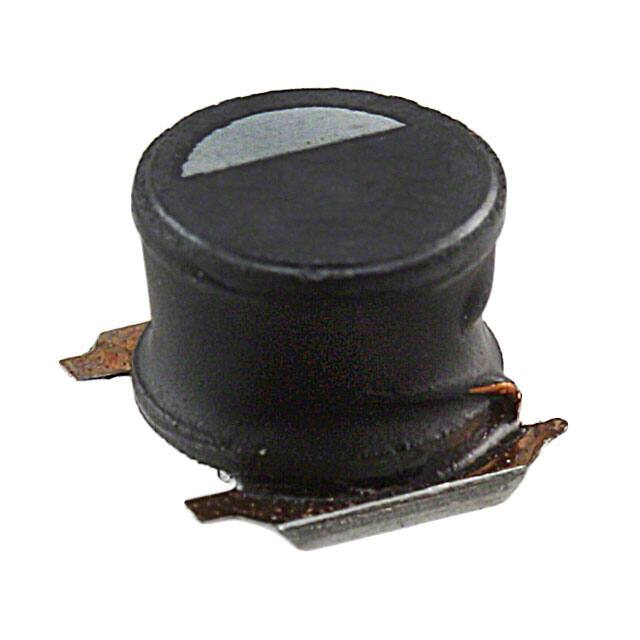

The TDK Corporation VLC6045T-6R8M is a wirewound, shielded fixed inductor designed for power line applications. It offers an inductance value of 6.8µH with a tolerance of ±20% and a rated current of 3A. The inductor has a low DC resistance of 41mOhm Max and operates within a temperature range of -40°C to 105°C.
This component is suitable for automatic mounting and comes in a miniature size with a 6x6mm mount area and a maximum height of 4.5mm. Its shielded construction makes it ideal for DC to DC converters in portable electronics such as LCD-TVs, printers, and note PCs. The product supports lead-free soldering and is RoHS3 compliant.
Key electrical characteristics include a test frequency of 100 kHz for inductance measurements. The surface mount package type and nonstandard case make it adaptable for various PCB designs. Its robust construction ensures reliable performance in demanding applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 6.8 µH.
The current rating is 3 A.
The DC resistance is a maximum of 41mOhm.
The operating temperature range is -40°C to 105°C.
It uses a surface mount package.
The product is listed as RoHS3 Compliant.
