VF320 Cinch VF320 is an F Type coaxial connector jack with a female socket, 75 Ohm impedance, and 2 GHz frequency rating. It features panel mount and through hole mounting with solder tab contact termination.
Mfr Part #:

VF320

Available from 1 distributors
Mfr Name: Cinch
Cinch
Cinch VF320 is an F Type coaxial connector jack with a female socket, 75 Ohm impedance, and 2 GHz frequency rating. It features panel mount and through hole mounting with solder tab contact termination.
✓ Total Stock: 200 pcs
$ Price Range: $3.15 - $5.84

VF320 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
200 pcs
On Request
200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

VF320 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Frequency
Housing Color
Impedance
Lead Style
Mounting Feature
Mounting Type
Number of Ports
Shield Termination
View Similar Products (0)

VF320 Description

Short technical summary and product information.

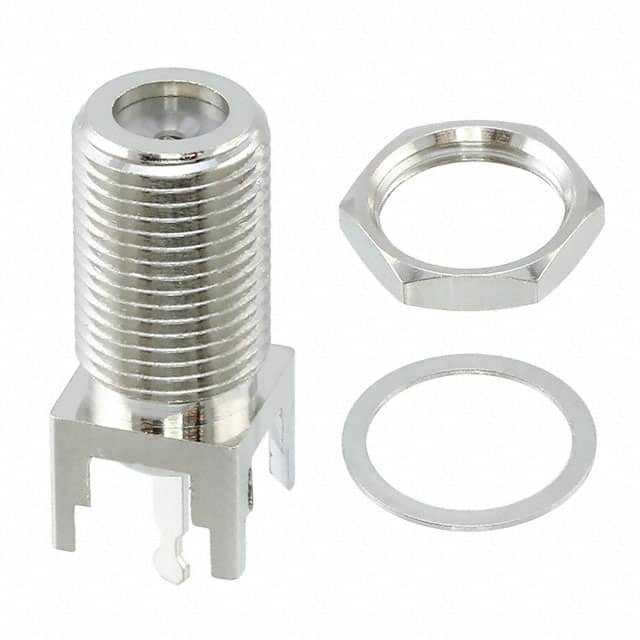

The Cinch VF320 is an F Type coaxial connector jack designed for RF applications requiring 75 Ohm impedance and operation up to 2 GHz. The connector uses a threaded fastening mechanism and a bulkhead front side nut for secure panel mounting.



This jack features a brass center contact with solder tab termination and a solder shield termination for reliable electrical connections. The silver housing provides a standard appearance for RF interconnect systems.



The VF320 is suitable for PCB and panel mount installations, making it a versatile choice for RF signal routing in telecommunications, broadcast, and test equipment. Its single-port design supports straightforward coaxial cable termination.

VF320 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Series: F
Canonical Name: Cinch F Type Coaxial Connector Jack, Female Socket, 75 Ohm, 2 GHz, Panel Mount/Through Hole, Solder Tab
Subcategory: F Type Jack

VF320 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

VF320 Estimated Pricing

Qty Low High
1+ $5.84 $5.84
10+ $5.32 $5.32
20+ $5.12 $5.12
100+ $4.34 $4.34
200+ $4.09 $4.09
500+ $3.97 $3.97
1,000+ $3.39 $3.39
2,000+ $3.15 $3.15

Estimated market price range - modelled values for guidance only, not live distributor offers.

VF320 Features

  • F Type jack with female socket.
  • 75 Ohm impedance for RF systems.
  • 2 GHz maximum operating frequency.
  • Panel mount and through hole mounting.
  • Solder tab contact and shield termination.

VF320 Applications

  • RF signal distribution in telecommunications.
  • Cable television and broadband equipment.
  • Test and measurement RF interfaces.
  • Antenna and satellite receiver connections.

VF320 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the impedance of the Cinch VF320?

The Cinch VF320 has a 75 Ohm impedance.

What is the maximum frequency rating of the VF320?

The VF320 is rated for operation up to 2 GHz.

What mounting options does the VF320 support?

The VF320 supports panel mount and through hole mounting with a bulkhead front side nut.

What type of connector is the Cinch VF320?

It is an F Type jack with a female socket connector.

How is the VF320 terminated?

The contact termination is solder tab, and the shield termination is solder.
