| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
316 pcs
|
316 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Resistance | |
| Contact Termination | |
| Current Rating | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Insertion Loss | |
| Insulation Resistance | |
| Lead Style | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Termination Style | |
| VSWR | |
| Voltage |

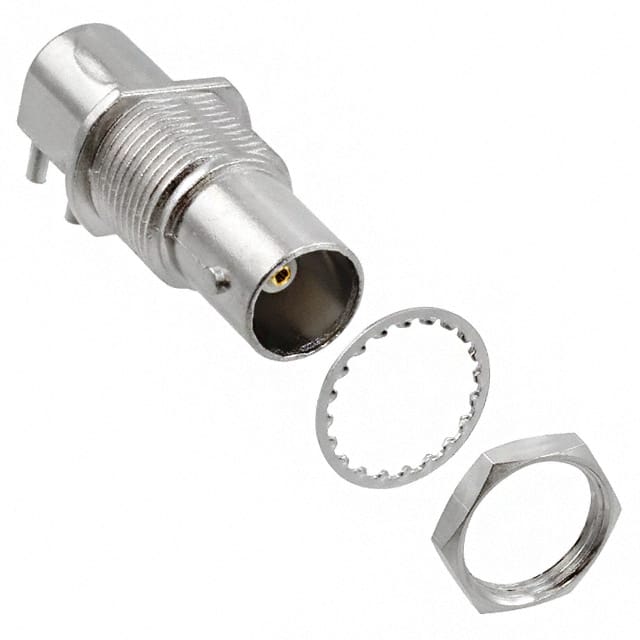

The Cinch VBM511-75 is a shielded BNC connector, specifically a right-angle jack designed for Printed Circuit Board (PCB) mounting. It features a 75 Ohm impedance, making it suitable for applications requiring specific signal integrity.
This connector is rated for a frequency range of DC to 1.5 GHz, with an insertion loss of 0.2 dB at 1 GHz and a VSWR of 1.3:1 maximum. The contact resistance is a maximum of 3.0 milliohms, and insulation resistance is a minimum of 5000 megohms. It supports a current rating of up to 3 Amps and has a mating cycle life of 100 cycles minimum.
The VBM511-75 is designed for robust mechanical performance, with a dielectric withstand voltage of 500 V maximum at sea level. Its right-angle PCB mount style facilitates efficient board layout in compact designs.
This component is suitable for various RF and microwave applications where a reliable 75 Ohm BNC connection is required on a PCB.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 Amps maximum.
500 V RMS maximum at sea level.
Panel mount, through hole, right angle with bulkhead front side nut.
DC to 1.5 GHz.
75 ohms.
1.3:1 maximum.
Solder.
