| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | 22+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Finish | |
| Body Material | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Failure Rate | |
| Fastening Type | |
| Frequency | |
| Gender | |
| Housing Color | |
| Impedance | |
| Lead Style | |
| Mounting Style | |
| Mounting Type | |
| Number of Ports | |
| SVHC Present | |
| Shield Termination | |
| Termination Style |

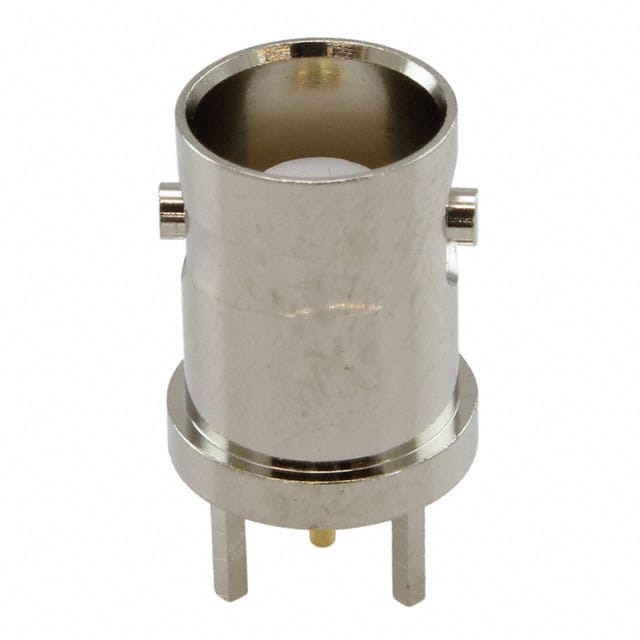

The VB334N is a BNC coaxial connector from Cinch Connectivity Solutions. It is a jack (female socket) with a straight body style, designed for through hole PCB mounting. The connector features a bayonet lock coupling mechanism for quick and secure connections.
Electrical specifications include a 50 Ohm impedance and a maximum operating frequency of 4 GHz. The center contact is made of brass, and the body is also brass with a nickel finish for durability and corrosion resistance. Termination is via solder for both the center contact and shield.
This connector is part of the BNC series and is suitable for RF applications requiring reliable performance up to 4 GHz. The silver housing and nickel finish provide a clean appearance. The PCB mount style ensures stable attachment to circuit boards.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.80 | $6.80 |
| 10+ | $5.78 | $5.78 |
| 25+ | $5.41 | $5.41 |
| 50+ | $5.15 | $5.15 |
| 100+ | $4.91 | $4.91 |
| 250+ | $4.54 | $4.54 |
| 500+ | $4.42 | $4.42 |
| 1,000+ | $4.17 | $4.17 |
| 2,500+ | $3.91 | $3.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Through hole PCB mount.
50 Ohm.
4 GHz.
Jack, female socket.
Brass body with nickel finish.
Solder termination for both center contact and shield.
Bayonet lock.
