| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,774 pcs
|
2774 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
126 pcs
|
126 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

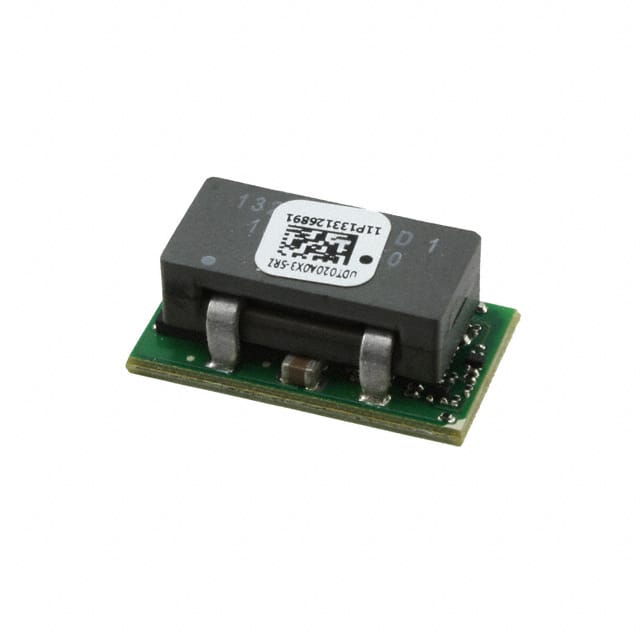

The UDT020A0X3-SRZ is a non-isolated Point-of-Load (PoL) DC-DC converter module from ABB Power Electronics. It features a digital interface using the PMBus protocol for control and monitoring. The module delivers up to 20A of output current with an efficiency of 95.2%.
The input voltage range is 3V to 14.4V, and the output voltage can be adjusted from 0.45V to 5.5V via an external resistor or PMBus commands. Key features include remote On/Off, undervoltage lockout (UVLO), overcurrent and overtemperature protection, and a Power Good signal. The module also incorporates Tunable Loop technology to optimize dynamic response.
Designed for commercial ITE applications, this module is suitable for distributed power architectures, intermediate bus voltage applications, telecommunications equipment, servers, storage, networking, and industrial equipment. It operates over a temperature range of -40°C to 85°C.
The module is housed in a 16-SMD surface-mount package measuring 20.3mm x 11.4mm x 8.5mm. It is RoHS3 compliant and REACH unaffected, with MSL level 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $17.39 | $17.39 |
| 5+ | $16.74 | $16.74 |
| 10+ | $16.47 | $16.47 |
| 25+ | $16.12 | $16.12 |
| 50+ | $15.86 | $15.86 |
| 100+ | $15.60 | $15.60 |
| 200+ | $15.79 | $15.79 |
| 400+ | $15.54 | $15.54 |
| 600+ | $15.39 | $15.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 3V to 14.4V.
It comes in a 16-SMD Module surface-mount package.
-40°C to 85°C.
Yes, it is RoHS3 compliant.
20A.
0.45V to 5.5V.
Surface Mount.
