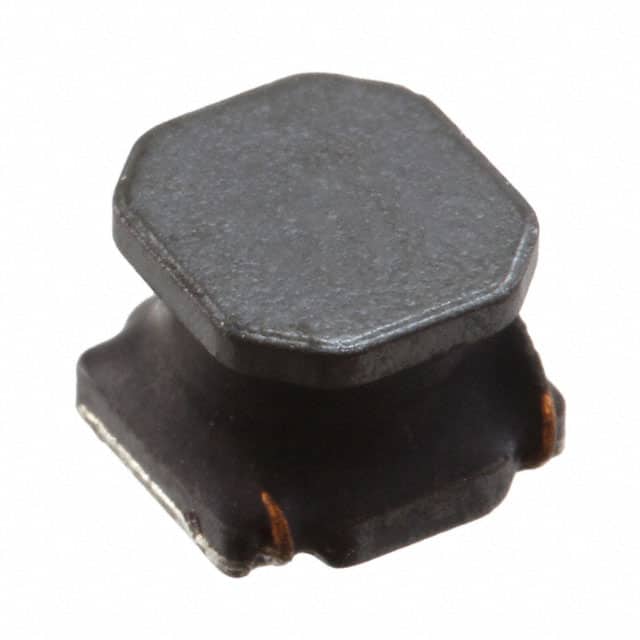

TYS50402R2N-10 The Laird Technologies TYS50402R2N-10 is a shielded, surface mount fixed inductor with 2.2µH inductance and a 3.8A current rating. It offers a wide operating temperature range of -40°C to 125°C.
Mfr Part #:

TYS50402R2N-10

Available from 2 distributors
Mfr Name: Laird Technologies
Laird Technologies
The Laird Technologies TYS50402R2N-10 is a shielded, surface mount fixed inductor with 2.2µH inductance and a 3.8A current rating. It offers a wide operating temperature range of -40°C to 125°C.
✓ Total Stock: 202,500 pcs
$ Price Range: $0.18

TYS50402R2N-10 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
198,000 pcs
On Request
198000 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
4,500 pcs
On Request
4500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TYS50402R2N-10 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Halogen Free
Height
Inductance
Length
Mounting Type
Operating Temperature
SVHC Present
Self Resonant Frequency
Shielding
Tape & Reel
Tolerance
Width
View Similar Products (0)

TYS50402R2N-10 Description

Short technical summary and product information.

The Laird Technologies TYS50402R2N-10 is a shielded power inductor from the TYS5040 series, designed for high-current applications. It features a low profile and small size, making it suitable for compact electronic designs.



Key electrical specifications include an inductance value of 2.2 µH with a tolerance of ±30%. It has a maximum DC resistance (DCR) of 19mΩ and a current rating of 3.8A. The inductor is shielded, which helps to minimize electromagnetic interference (EMI).



This component operates across a wide temperature range from -40°C to +125°C, ensuring reliability in various environmental conditions. The mounting type is surface mount, and it comes in a standard package quantity of 1500 units on a reel.



Applications for this inductor include DC-DC converters, power supplies, LCD TVs, gaming consoles, notebooks, servers, printers, networking equipment, data storage, GPS devices, set-top boxes, base stations, smart meters, and medical instruments.

TYS50402R2N-10 Quick Information

Product Type: Fixed Inductor
Series: TYS5040
Canonical Name: Laird Technologies TYS5040 Series Shielded Power Inductor
Subcategory: Inductors, Chokes & Coils

TYS50402R2N-10 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

TYS50402R2N-10 Estimated Pricing

Qty Low High
1+ $0.18 $0.18

Estimated market price range - modelled values for guidance only, not live distributor offers.

TYS50402R2N-10 Features

  • Shielded magnetic structure for low EMI.
  • Low DCR and high efficiency.
  • Low profile and small size.
  • Wide operating temperature range.
  • Surface mount for automated assembly.

TYS50402R2N-10 Applications

  • Suitable for DC-DC converters.
  • Used in power supply circuits.
  • Ideal for consumer electronics.
  • Applicable in networking devices.
  • Designed for server applications.

TYS50402R2N-10 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance value of the TYS50402R2N-10?

The inductance value is 2.2 µH.

What is the current rating for this inductor?

The current rating is 3.8 A.

What is the maximum DC resistance (DCR) of the TYS50402R2N-10?

The maximum DC resistance is 19mΩ.

What is the operating temperature range for this component?

The operating temperature range is -40°C to 125°C.

Is the TYS50402R2N-10 shielded?

Yes, this inductor features a shielded magnetic structure.

What is the self-resonant frequency of the TYS50402R2N-10?

The self-resonant frequency is 50 MHz.

How is the TYS50402R2N-10 mounted?

It is designed for surface mount (SMD) applications.
