| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Orientation | |
| Cable Entry Diameter | |
| Cable Exit | |
| China RoHS | |
| Color | |
| Compatible Cable Diameter Range | |
| Connector Detail Specification Number | |
| Connector Interface Specification | |
| Diameter | |
| ELV | |
| Entry Size Code | |
| Features | |
| Halogen Free | |
| Ingress Protection | |
| Material | |
| Mounting Type | |
| Operating Temperature Range | |
| Plating | |
| Primary Product Color | |
| Primary Product Material | |
| Primary Product Plating Material | |
| Product Length | |
| SVHC Present | |
| Salt Spray Resistance | |
| Shell Size | |
| Shielding | |
| TE Connector Interface Code | |
| Termination Device Included | |
| Termination Device Type | |
| Thread Size | |
| Type |

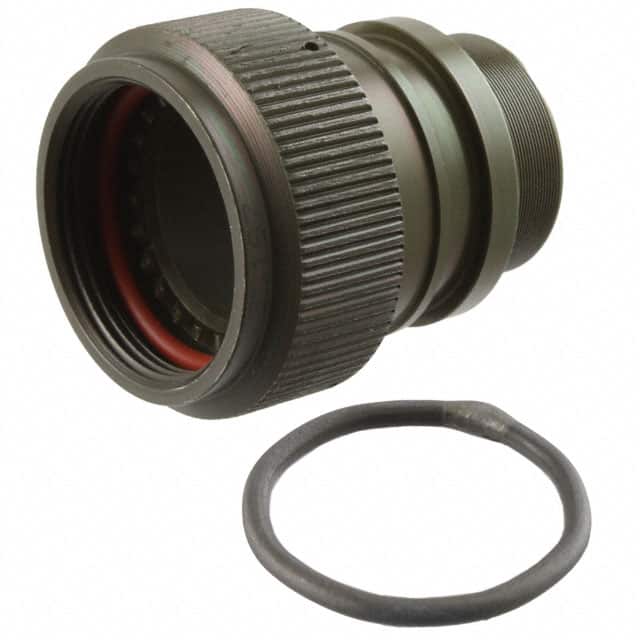

The TE Connectivity TXR40AB00-1410AI is a ruggedized backshell designed for circular connectors. It features a straight body orientation and is constructed from durable aluminum with Cadmium plating, meeting AMS-QQ-P-416 Type II Class 3 specifications.
This backshell is compatible with MIL-DTL-38999 Series III and IV connectors, specifically supporting shell sizes 15 and D. The cable entry diameter ranges from 0.2 to 15.9 mm, with a compatible cable diameter range of 7.9 to 12.7 mm. The product length is 26.5 mm.
Operating within a temperature range of -65 to 175 °C, this backshell offers environmental resistance and 500 hours of salt spray resistance. It includes a TR10AI termination device and utilizes a Tinel-Lock system for secure connections. The primary product color is Olive Drab.
Compliance information indicates that this product is not compliant with EU RoHS and ELV directives. It is also noted as having restricted materials above the threshold for China RoHS. For REACH, it is marked as unaffected by the current ECHA Candidate List as of JAN 2025, with Cadmium and Lead identified as SVHCs above threshold in plating and body/nut respectively. It is also Halogen Free.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -65 to 175 °C.
It is compatible with MIL-DTL-38999 Series III and IV connectors.
The cable entry diameter ranges from 0.2 to 15.9 mm.
The primary product material is Aluminum.
The plating material is Cadmium.
It is compatible with shell size 15, D.
No, this product is not compliant with the EU RoHS Directive.
