Mfr Part #:

TWR-S08DC-PT60

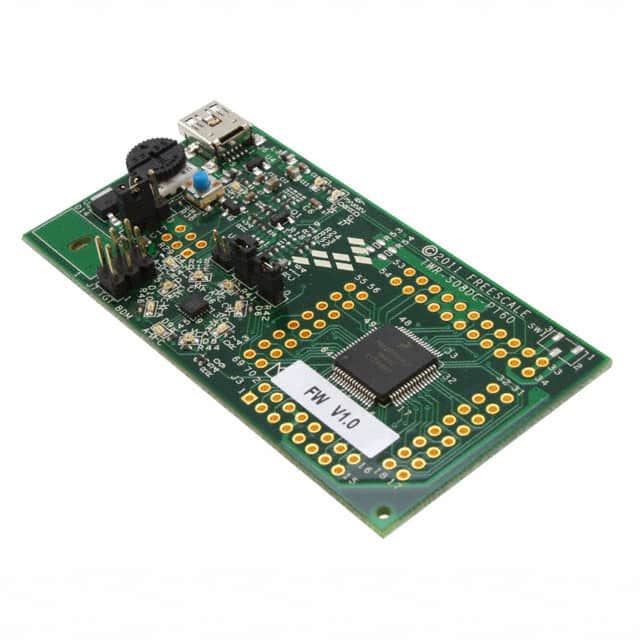

The TWR-S08DC-PT60 is a Tower System daughter card for evaluating the 5-volt 8-bit MC9S08P family of MCUs from NXP. It includes board(s) and cable(s) for rapid prototyping.

✓ Total Stock: 2,568 pcs

$ Price Range: $28.60

TWR-S08DC-PT60 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Components Technology Group, Inc. ✓ Non-Authorised Inventory information	2,568 pcs On Request	2568 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

TWR-S08DC-PT60 Description

Short technical summary and product information.

The TWR-S08DC-PT60 is a daughter card within the NXP Tower System, a modular development platform enabling rapid prototyping and tool re-use. Designed for the 5-volt 8-bit MC9S08P family, it features an HCS08 core processor and the MC9S08P utilized IC. The board includes on-board peripherals such as GPIO-driven LEDs, a touch-sensing interface with touch pads, an ADC input from a potentiometer, and an I2C-connected low-g accelerometer (MMA8451Q). It also provides a reset switch, OSBDM USB connector, and expansion header for connection to the TWR-S08UNIV module. The evaluation platform is fixed-mount and comes with board(s) and cable(s). Compliance information lists RoHS3, REACH unaffected, and MSL 1 (all unverified). This board is targeted for industrial and home appliance applications.

TWR-S08DC-PT60 Quick Information

Product Type: Evaluation Board - MCU

Canonical Name: TWR-S08DC-PT60 Tower System Daughter Card for MC9S08P Family

Subcategory: MCU 8-Bit

TWR-S08DC-PT60 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

TWR-S08DC-PT60 Estimated Pricing

Qty	Low	High
1+	$28.60	$28.60

Estimated market price range - modelled values for guidance only, not live distributor offers.

TWR-S08DC-PT60 Features

HCS08 core processor for 8-bit MCU evaluation.
Tower System platform for modular development.
Includes board(s) and cable(s) for setup.
On-board peripherals: LEDs, touch pads, potentiometer.
RoHS3 compliant (unverified).

TWR-S08DC-PT60 Applications

Ideal for evaluating MC9S08P family MCUs.
Used in industrial and home appliance applications.
Suitable for rapid prototyping with Tower System.
Enables touch-sensing interface development.

TWR-S08DC-PT60 FAQs

1 frequently asked questions generated from this part’s specifications.

Is the TWR-S08DC-PT60 RoHS compliant?

The TWR-S08DC-PT60 is listed as RoHS3 Compliant, but this status is unverified.

TWR-S08DC-PT60 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.

View All Alternate Parts

TWR-S08PT60

NXP Semiconductors

TWR-S08PT60 is a Tower System daughter card for the 5-volt 8-bit MC9S08P family of MCUs from NXP. It provides an evaluation platform with HCS08 core processor, including board(s) and cable(s).
