TSW-110-09-T-S-RA
Samtec Inc.
10-position, 1-row, right-angle through-hole header from Samtec's TSW series. Features 2.54mm pitch, unshrouded design, and tin-plated phosphor bronze contacts.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

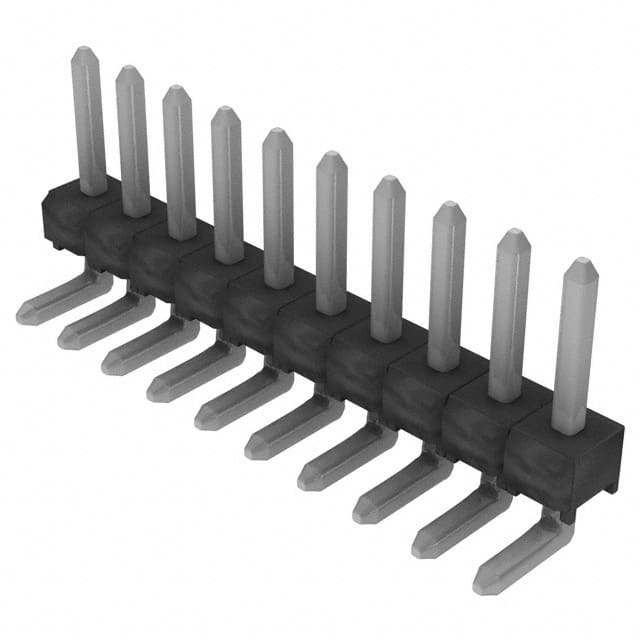

The Samtec TSW-110-08-T-S-RA is a 10-position single row right angle header from the TSW series, designed for 2.54mm pitch applications. It features tin plated phosphor bronze square posts and a black PBT insulator with UL94 V-0 flammability rating. The through-hole right angle mounting allows for compact board-to-board or cable connections. Operating temperature range is -55°C to 105°C. Current rating varies depending on mating connector, up to 6.3A per pin when mated with SSQ. Voltage rating is up to 450 VAC for right angle versions mated with BCS or SSM. The part is packaged in bulk and is RoHS3 compliant (unverified). Note: TSW series is not lead-free solderable; wave soldering is recommended.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.76 | $0.76 |
| 50+ | $0.69 | $0.69 |
| 100+ | $0.57 | $0.57 |
| 500+ | $0.46 | $0.46 |
| 1,000+ | $0.37 | $0.37 |
| 2,000+ | $0.33 | $0.33 |
| 5,000+ | $0.27 | $0.27 |
| 10,000+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions.
2.54mm (0.100 inch).
Through hole, right angle.
Current rating depends on mating connector; up to 6.3A per pin when mated with SSQ socket strip (2 positions powered).
For right angle version, 450 VAC when mated with BCS or SSM socket strips.
-55°C to 105°C.
Phosphor bronze with tin plating.
