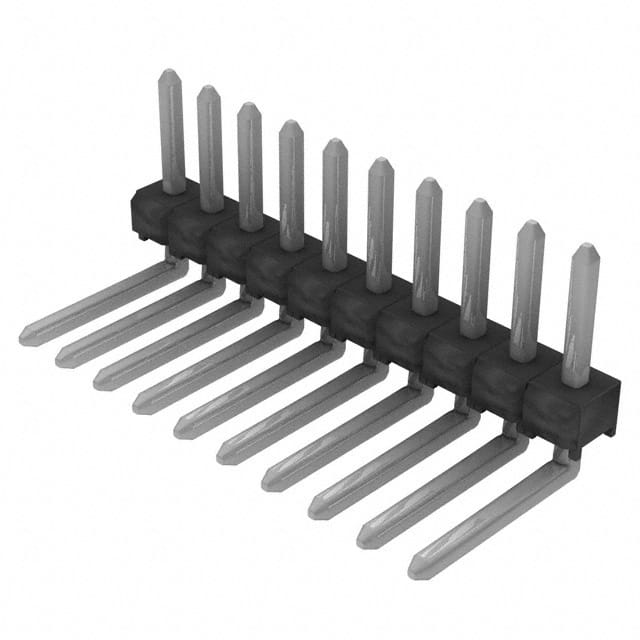

TSW-110-09-T-S-RA 10-position, 1-row, right-angle through-hole header from Samtec's TSW series. Features 2.54mm pitch, unshrouded design, and tin-plated phosphor bronze contacts.
Mfr Part #:

TSW-110-09-T-S-RA

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
10-position, 1-row, right-angle through-hole header from Samtec's TSW series. Features 2.54mm pitch, unshrouded design, and tin-plated phosphor bronze contacts.
✓ Total Stock: 304 pcs
$ Price Range: $0.24 - $0.76

TSW-110-09-T-S-RA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
304 pcs
On Request
304 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSW-110-09-T-S-RA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Size
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

TSW-110-09-T-S-RA Description

Short technical summary and product information.

The Samtec TSW-110-09-T-S-RA is a 10-position, single-row, right-angle through-hole header from the TSW series of classic 0.100" pitch header strips. It features an unshrouded design with square .025" (0.635mm) male pins, making it suitable for board-to-board and cable connections.



Key specifications include a contact length of 5.84mm (0.230") and a tail length of 7.37mm (0.290"). The insulator is made of black polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating, and the operating temperature range is -55°C to 105°C. Contacts are phosphor bronze with tin plating for good solderability and corrosion resistance.



The header is packaged in bulk and is RoHS compliant and REACH unaffected (unverified). Its right-angle orientation allows for compact PCB layouts, and the unshrouded design enables mating with a wide variety of Samtec socket strips such as SSW, BCS, and ESQ series.

TSW-110-09-T-S-RA Quick Information

Product Type: Male Pin Header
Series: TSW
Canonical Name: Samtec TSW-110-09-T-S-RA .100" (2.54mm) Pitch Through Hole Header Strip, 10 Position, 1 Row, Right Angle, Tin Plating
Subcategory: Unshrouded Header

TSW-110-09-T-S-RA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: REACH Unaffected

TSW-110-09-T-S-RA Estimated Pricing

Qty Low High
1+ $0.76 $0.76
50+ $0.63 $0.63
100+ $0.52 $0.52
500+ $0.43 $0.43
1,000+ $0.38 $0.38
2,000+ $0.33 $0.33
5,000+ $0.29 $0.29
10,000+ $0.24 $0.24

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSW-110-09-T-S-RA Features

  • 10 positions in a single row.
  • 2.54mm pitch for standard applications.
  • Right-angle through-hole mounting style.
  • Tin-plated phosphor bronze contacts.
  • UL94 V-0 rated PBT insulator.

TSW-110-09-T-S-RA Applications

  • Suitable for board-to-board connections.
  • Used with cable assemblies.
  • Compatible with Samtec socket strips.
  • Ideal for industrial electronics applications.
  • Serves prototyping and production needs.

TSW-110-09-T-S-RA FAQs

7 frequently asked questions generated from this part’s specifications.
What is the position count of the TSW-110-09-T-S-RA?

It has 10 positions in a single row.

What is the pitch of this header?

The pitch is 2.54mm (0.100").

What mounting type does this header use?

It uses through-hole, right-angle mounting with solder termination.

What is the contact material and finish?

Contacts are phosphor bronze with tin plating.

What is the operating temperature range?

The operating temperature range is -55°C to 105°C.

What is the insulation material and flammability rating?

The insulator is made of polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating.

Is this header shrouded or unshrouded?

It is an unshrouded header with push-pull fastening.
