| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Finish | |
| Connector Style | |
| Connector Type | |
| Frequency | |
| Impedance | |
| Mounting Type | |
| Operating Temperature Range | |
| Power Rating | |
| Tape & Reel |

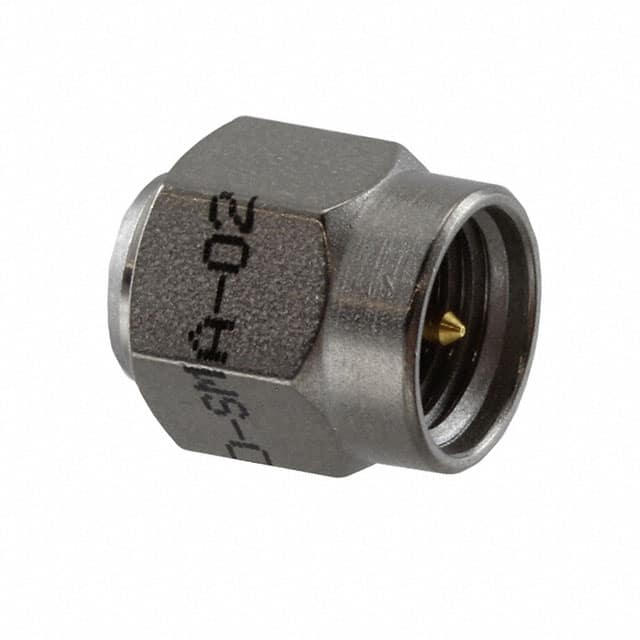

The TRM-2444-M0-SMA-02 is a coaxial RF termination from Cinch Connectivity Solutions. It features an SMA male plug connector with a passivated stainless steel body, designed for high-performance applications requiring a 50 Ohm impedance match up to 18 GHz.
Electrical specifications include a maximum power rating of 0.5W at 25°C and low VSWR of 1.05 + 0.008 f(GHz) from DC to 18 GHz, and 1.30 maximum from 18 to 26.5 GHz. The operating temperature range spans -65°C to +125°C, indicating robust environmental tolerance.
The component has a free hanging mounting style with a cap, suitable for cable or panel end termination. Its ultra-short miniature size and lightweight construction allow for tight space integration in RF systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $175.39 | $175.39 |
| 10+ | $149.09 | $149.09 |
| 25+ | $139.77 | $139.77 |
| 50+ | $133.11 | $133.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
DC to 18 GHz.
50 Ohms.
0.5 Watts maximum at 25°C.
1.05 + 0.008 f(GHz) from DC to 18 GHz, 1.30 from 18 to 26.5 GHz.
-65°C to +125°C.
SMA male plug.
Passivated Stainless Steel.
