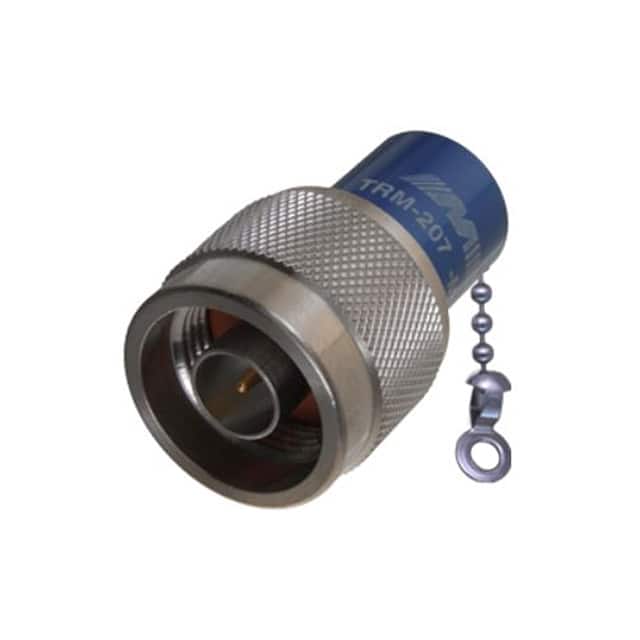

TRM-2070-MC-NNN-07 N Type plug termination, male pin, 50 Ohm impedance, DC to 18 GHz frequency range, 2W power rating. Features anodized body and chain for free hanging cap mounting.
Mfr Part #:

TRM-2070-MC-NNN-07

Available from 1 distributors
Mfr Name: Cinch
Cinch
N Type plug termination, male pin, 50 Ohm impedance, DC to 18 GHz frequency range, 2W power rating. Features anodized body and chain for free hanging cap mounting.
✓ Total Stock: 2 pcs
$ Price Range: $174.48 - $229.06

TRM-2070-MC-NNN-07 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TRM-2070-MC-NNN-07 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Body Finish
Connector Style
Connector Type
Features
Frequency
Impedance
Mounting Type
Power Rating
View Similar Products (0)

TRM-2070-MC-NNN-07 Description

Short technical summary and product information.

The TRM-2070-MC-NNN-07 is a coaxial RF termination from Cinch Connectivity Solutions. It features an N Type connector style with a male pin plug design. The termination is rated for 50 Ohm impedance and operates from DC to 18 GHz, handling up to 2 Watts of power. The body has an anodized finish for durability. This termination is designed for free hanging cap mounting and includes a chain for secure attachment. It is RoHS3 and REACH unaffected compliant. Suitable for terminating RF lines in test and measurement, communication systems, and other high-frequency applications.

TRM-2070-MC-NNN-07 Quick Information

Product Type: RF Termination
Series: N Type
Canonical Name: N Type Plug Termination, Male Pin, 50 Ohm, DC-18 GHz, 2W
Subcategory: N Type Terminator

TRM-2070-MC-NNN-07 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TRM-2070-MC-NNN-07 Estimated Pricing

Qty Low High
1+ $229.06 $229.06
10+ $194.72 $194.72
26+ $182.04 $182.04
50+ $174.48 $174.48

Estimated market price range - modelled values for guidance only, not live distributor offers.

TRM-2070-MC-NNN-07 Features

  • N Type male plug connector style.
  • 50 Ohm impedance for RF matching.
  • DC to 18 GHz frequency range.
  • 2 Watt power handling capacity.
  • Anodized body finish for durability.

TRM-2070-MC-NNN-07 Applications

  • Terminates RF transmission lines in test setups.
  • Used in communication systems for load matching.
  • Ideal for 50 Ohm system calibration.
  • Suitable for high-frequency laboratory environments.

TRM-2070-MC-NNN-07 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the mounting style for the TRM-2070-MC-NNN-07?

Free hanging cap mounting with chain.

What connector style does this termination use?

N Type with male pin plug.

What is the impedance rating?

50 Ohms.

What frequency range does it support?

DC to 18 GHz.

What is the power rating?

2 Watts.

Does it have any special features?

Yes, it includes a chain for secure attachment.
