| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

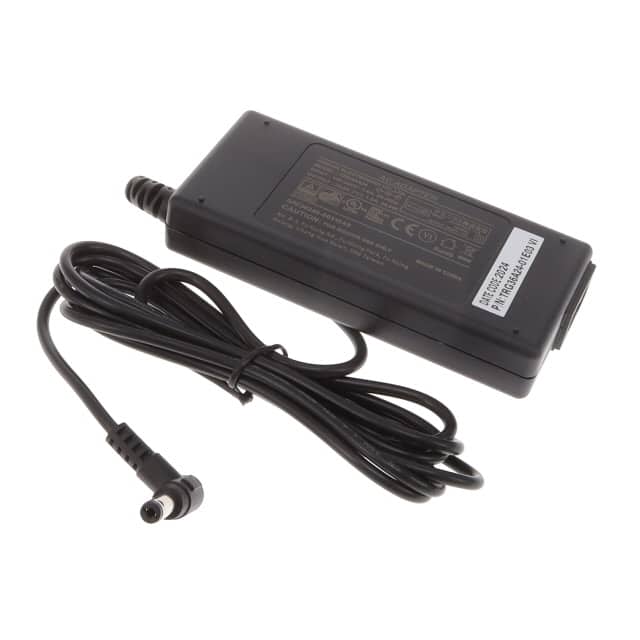

This AC/DC desktop adapter from Cincon Electronics, model TRG36A24-01E03 VI, delivers 36 watts of power with a stable 24V output at 1.5A. Designed for ITE (Commercial) applications, it meets efficiency standards including Level VI and CoC Tier 2.
The adapter features an IEC 320-C8 input connector and a right-angle barrel plug output with a 2.5mm inner diameter and 5.5mm outer diameter, featuring positive center polarization. Its compact dimensions are 111.0mm x 51.0mm x 22.5mm.
Compliance is ensured with approvals from CE, cULus, FCC, GS, PSE, and TUV, adhering to standards like 60950-1 and 62368-1. The operating temperature range is -20°C to 60°C, and it boasts a low no-load power consumption of 75mW maximum. This adapter is RoHS3 Compliant and meets REACH Unaffected status.
100-240VAC.
24V at 1.5A.
-20°C to 60°C.
Level VI and CoC Tier 2.
CE, cULus, FCC, GS, PSE, TUV.
Barrel plug, 2.5mm I.D. x 5.5mm O.D., positive center.
Desktop (Class II).
