| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Tape & Reel | |
| Voltage |

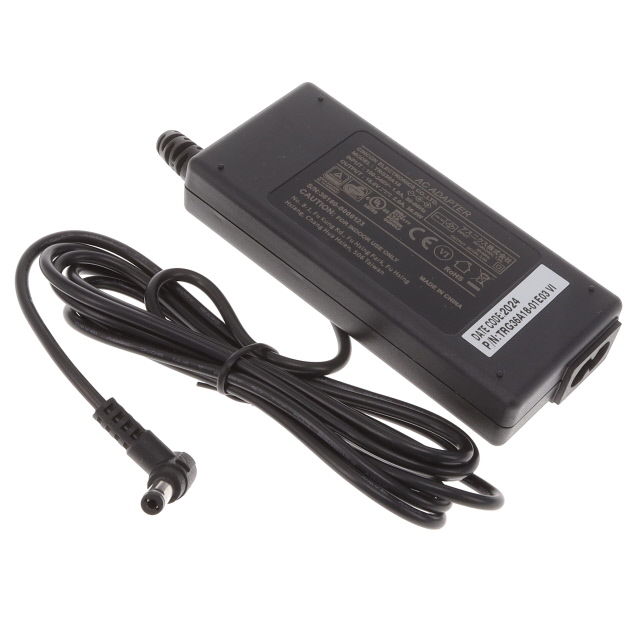

The Cincon TRG36A18-01E03 VI is a 36W AC/DC external desktop adapter designed for commercial ITE applications. It provides a stable 18V output with a maximum current of 2A.
This adapter meets stringent energy efficiency requirements, featuring Level VI efficiency and CoC Tier 2 compliance. It operates with a wide input voltage range of 90 to 264 VAC and utilizes an IEC 320-C8 input connector. The output is delivered via a standard barrel plug with specific dimensions.
Designed for reliability, the TRG36A18-01E03 VI operates within a temperature range of -20°C to 60°C. Its compact dimensions (111.0mm x 51.0mm x 22.5mm) make it suitable for various integration needs. The adapter is classified as Class II and requires a separate input cord.
Key specifications include a low no-load power consumption of 75mW (Max) and compliance with international standards such as 60950-1 and 62368-1. It is RoHS3 compliant and has an MSL rating of 1 Unlimited.
The TRG36A18-01E03 VI adapter provides an 18V output voltage with a maximum output current of 2A.
The Cincon TRG36A18-01E03 VI adapter has a power rating of 36W.
This adapter accepts an input voltage range of 90 to 264 VAC.
The TRG36A18-01E03 VI meets Level VI efficiency and CoC Tier 2 standards.
The adapter can operate within a temperature range of -20°C to 60°C.
The dimensions of the TRG36A18-01E03 VI adapter are 111.0mm in length, 51.0mm in width, and 22.5mm in height.
The adapter uses an IEC 320-C8 input connector.
