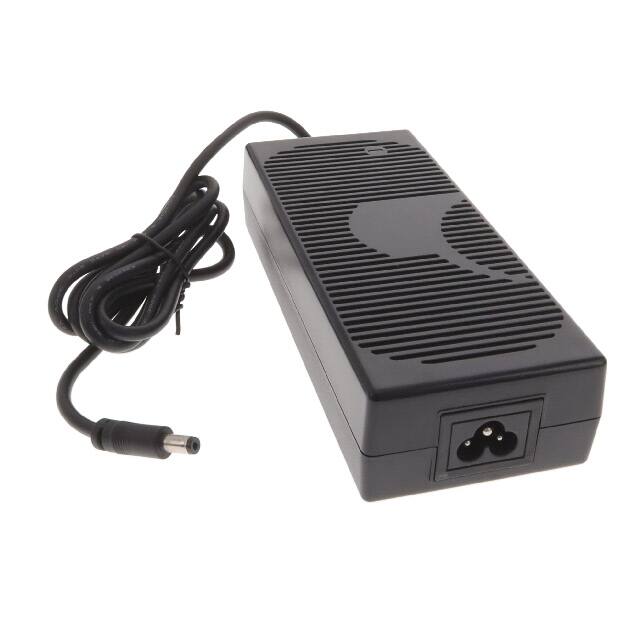

The GlobTek, Inc. TR9LZ8421CCPIMR6B is an AC/DC desktop adapter designed for various applications including Household Appliances, ITE (Commercial), and Medical. It delivers a robust 160W of power with a 19V output and a maximum current of 8.42A.
This adapter features a wide input voltage range of 90-264 VAC and complies with Efficiency Level VI and CoC Tier 2 standards, ensuring energy efficiency. The input connector is an IEC 320-C6, and the output connector is a standard Barrel Plug (2.1mm I.D. x 5.5mm O.D. x 11.0mm) with Positive Center polarization.
Designed as a Class I desktop unit, it operates within a temperature range of -10°C to 40°C. The dimensions are 176.5mm x 74.0mm x 40.0mm. It also meets several international safety standards, including 60335-1, 60601-1-11, 60601-1-2, 60950-1, and 62368-1, and has approvals from agencies like CB, CCC, CE, and cETLus.
The adapter has a low no-load power consumption of 150mW (Max) and a cord length of 1.20m. It is RoHS3 Compliant and has a REACH Unaffected status.
The TR9LZ8421CCPIMR6B adapter has an output power of 160 W.
This adapter provides a 19V output voltage and a maximum current of 8.42A.
The input voltage range is 90 to 264 VAC.
It meets Efficiency Level VI and CoC Tier 2.
The operating temperature range is -10°C to 40°C.
The dimensions are 176.5mm x 74.0mm x 40.0mm.
It uses an IEC 320-C6 input connector and a Barrel Plug (2.1mm I.D. x 5.5mm O.D. x 11.0mm) output connector.
