| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

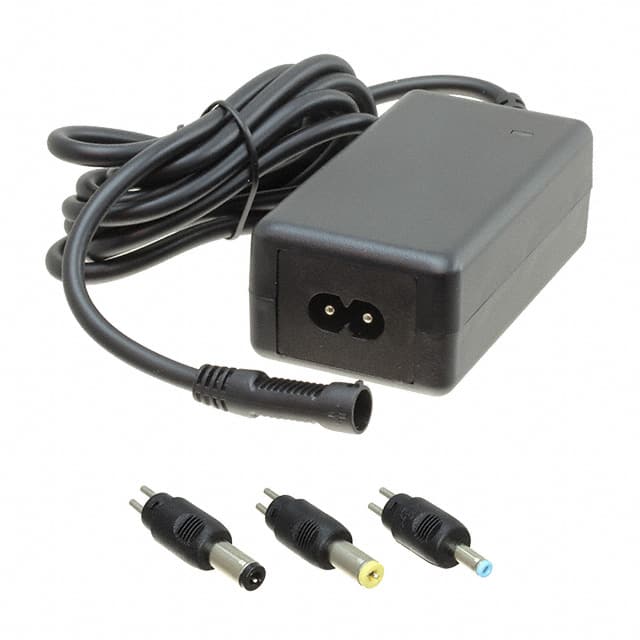

The GlobTek, Inc. TR9KX375T00-IMR6B is an AC/DC external desktop adapter designed for commercial and medical applications. It provides a stable 48V output at up to 375mA, delivering a total power of 18W. This adapter meets Level VI efficiency standards, ensuring energy savings.
The unit utilizes an IEC 320-C8 input connector and is compatible with international voltage ranges from 90 to 264 VAC. The output is delivered via a barrel plug kit, supporting various common sizes. Its compact dimensions of 87.0mm x 47.0mm x 32.0mm make it suitable for integration into various systems.
Operating within a temperature range of -20°C to 40°C, the TR9KX375T00-IMR6B is built for reliable performance. It adheres to multiple safety and performance standards, including CB, CCC, CE, cETLus, and others, making it suitable for global use. The adapter is classified as Class I for safety.
Key specifications include a low no-load power consumption of 75mW (Max). The input cord is sold separately, offering flexibility in system design. This adapter is suitable for ITE (Commercial) and Medical applications.
The output voltage is 48V.
The maximum output current is 375mA.
The power rating is 18W.
The input voltage range is 90 to 264 VAC.
The operating temperature range is -20°C to 40°C.
The dimensions are 87.0mm x 47.0mm x 32.0mm.
It meets standards including CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, S-Mark, UKRSepro, UL, and VCCI.
