| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

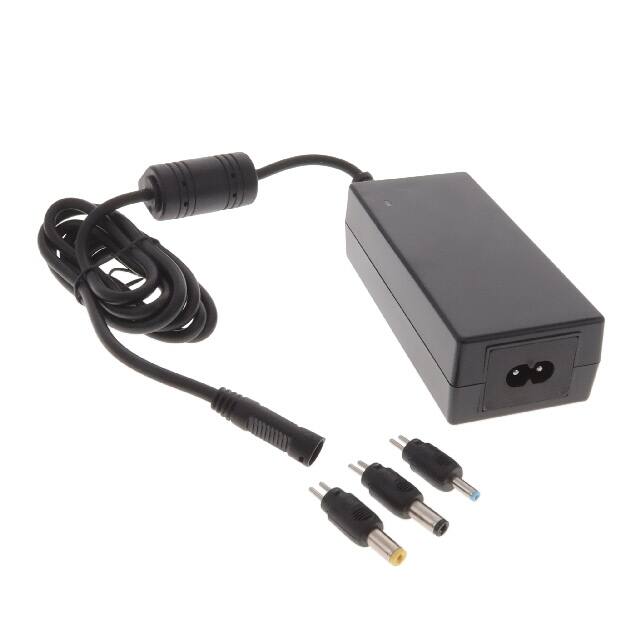

The GlobTek, Inc. TR9KX1350T00CIMR6B is an AC/DC desktop power supply designed for ITE (Commercial) and Medical applications. It delivers a 48VDC output at 65W of power, with an input voltage range of 100-240 VAC and an input connector type of IEC 320-C8.
This adapter features Level VI and CoC Tier 2 efficiency compliance, ensuring energy savings. It operates within a temperature range of -20°C to 40°C and has a low no-load power consumption of 75mW maximum. The dimensions are 117.5mm x 53.5mm x 34.2mm.
Key specifications include a 1.35A output current and a positive center polarization for the output connector, which is a barrel plug kit supporting multiple sizes (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm). The unit is designed as Desktop (Class II) and is approved by multiple agencies including CE, cETLus, and FCC.
100-240 VAC.
48 VDC at 1.35 A.
-20°C to 40°C.
Desktop (Class II) with IEC 320-C8 input connector.
Level VI and CoC Tier 2.
BSMI, CB, CE, cETLus, EAC, ETL, FCC, PSE, S-Mark, UKRSepro, VCCI.
ITE (Commercial) and Medical.
