| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Tape & Reel | |
| Voltage |

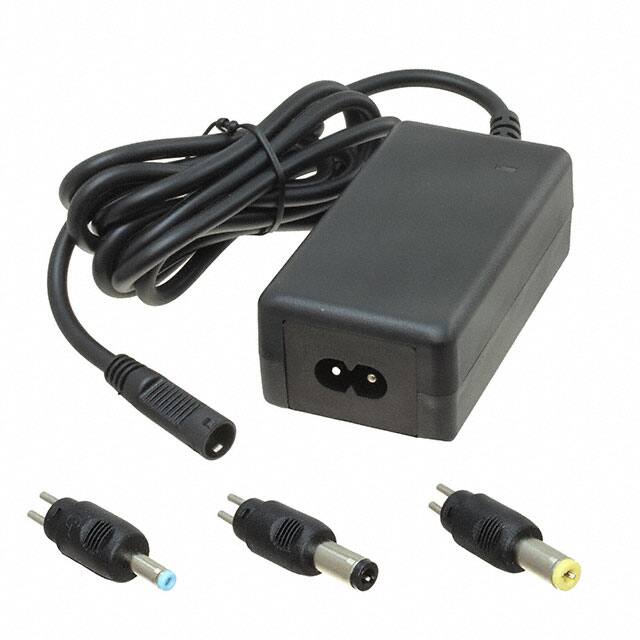

The GlobTek TR9KH1000T00-IMR6B is a regulated switchmode AC-DC power supply designed for desktop use. It delivers a stable 18V output at 1A, providing a total of 18W of power.
This power adapter operates internationally, accepting an input voltage range of 100-240V AC at 50-60 Hz. It features an IEC 60320/C8 input connector and comes with a T-plug system for output, including common barrel plug sizes (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm). The cord length is 1.50 meters.
Designed for efficiency, it meets the USA DoE Level VI standard and has a low no-load power consumption of 75mW maximum. The operating temperature range is -20°C to 40°C. Approvals include CB, CCC, CE, cETLus, ETL, FCC, and UL, making it suitable for various applications including household appliances, ITE commercial, and medical equipment.
The unit has dimensions of 87.0mm x 47.0mm x 32.0mm and is classified as Class II, Desktop form factor.
The TR9KH1000T00-IMR6B provides an output voltage of 18.0V at a current of 1.0A.
This AC/DC adapter has a power rating of 18W.
The TR9KH1000T00-IMR6B supports an input voltage range of 100-240V AC.
The efficiency level of the TR9KH1000T00-IMR6B is Level VI.
The dimensions of the TR9KH1000T00-IMR6B are 87.0mm in length, 47.0mm in width, and 32.0mm in height.
The operating temperature range for this power supply is -20°C to 40°C.
The TR9KH1000T00-IMR6B includes a T-plug system with 1.3mm x 3.5mm, 2.1mm x 5.5mm, and 2.5mm x 5.5mm plugs.
