| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Duration | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

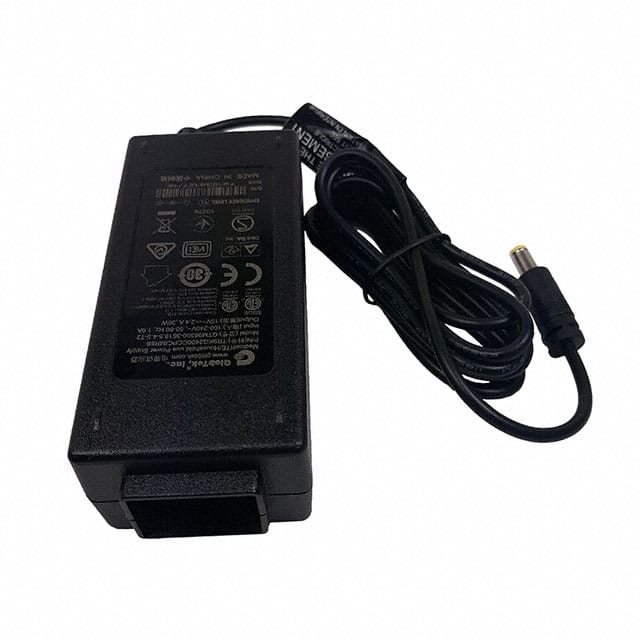

This GlobTek, Inc. TR9KG2400CCPCIMR6B is an AC/DC desktop adapter designed for various applications including household appliances, ITE (Commercial), and Medical.
It delivers a stable 15V output at a maximum current of 2.4A, providing a total power of 36W. The adapter meets Level VI efficiency standards, ensuring optimal energy usage. The input voltage range is 90-264 VAC, making it suitable for international use.
The unit features a compact desktop (Class II) form factor with dimensions of 105.0mm x 50.0mm x 35.5mm. It utilizes a standard IEC 320-C8 input connector and a barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 11.0mm). The input cord is sold separately and has a length of 1.50m.
Compliance is certified by multiple agencies including CB, CCC, CE, EAC, ETL, LPS, PSE, RCM, S-Mark, UKRSepro, and VCCI. The operating temperature range is -20°C to 40°C. The adapter is RoHS3 compliant, has an MSL of 1, and is REACH unaffected.
The TR9KG2400CCPCIMR6B has a 15V output voltage and a maximum output current of 2.4A.
The TR9KG2400CCPCIMR6B adapter has a power rating of 36W.
The input voltage range for the TR9KG2400CCPCIMR6B is 90-264 VAC.
The TR9KG2400CCPCIMR6B meets Level VI efficiency standards.
The operating temperature range for the TR9KG2400CCPCIMR6B is -20°C to 40°C.
The TR9KG2400CCPCIMR6B uses a Barrel Plug connector with dimensions 2.1mm I.D. x 5.5mm O.D. x 11.0mm.
The dimensions of the TR9KG2400CCPCIMR6B adapter are 105.0mm x 50.0mm x 35.5mm.
