| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

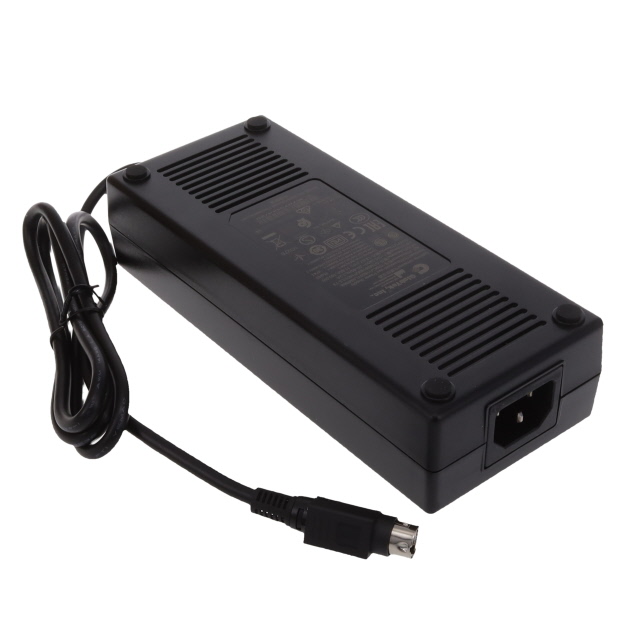

The TR9CJ11800YL4IMR6B from GlobTek, Inc. is a 160-watt AC/DC external desktop adapter designed for various applications including household appliances, ITE (Commercial), and medical devices. It provides a stable output voltage of 13.5V with a maximum output current of 11.8A.
This adapter meets Efficiency Level VI and CoC Tier 1 standards, ensuring energy efficiency. It operates within a wide input voltage range of 90 to 264 VAC and features an IEC 320-C14 input connector. The output is delivered via a 4-pin Power DIN connector.
With dimensions of 176.0mm x 74.0mm x 40.0mm, the TR9CJ11800YL4IMR6B has a desktop (Class I) form factor. It is designed for international use and complies with multiple safety standards including 60335-1, 60601-1, 60950-1, and 62368-1. The operating temperature range is -10°C to 40°C.
The output voltage is 13.5V and the maximum output current is 11.8A.
The input voltage range is 90 to 264 VAC.
It meets Level VI and CoC Tier 1 efficiency standards.
The operating temperature range is -10°C to 40°C.
It uses a 4-pin Power DIN output connector.
It is certified to 60335-1, 60601-1, 60950-1, and 62368-1.
