| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

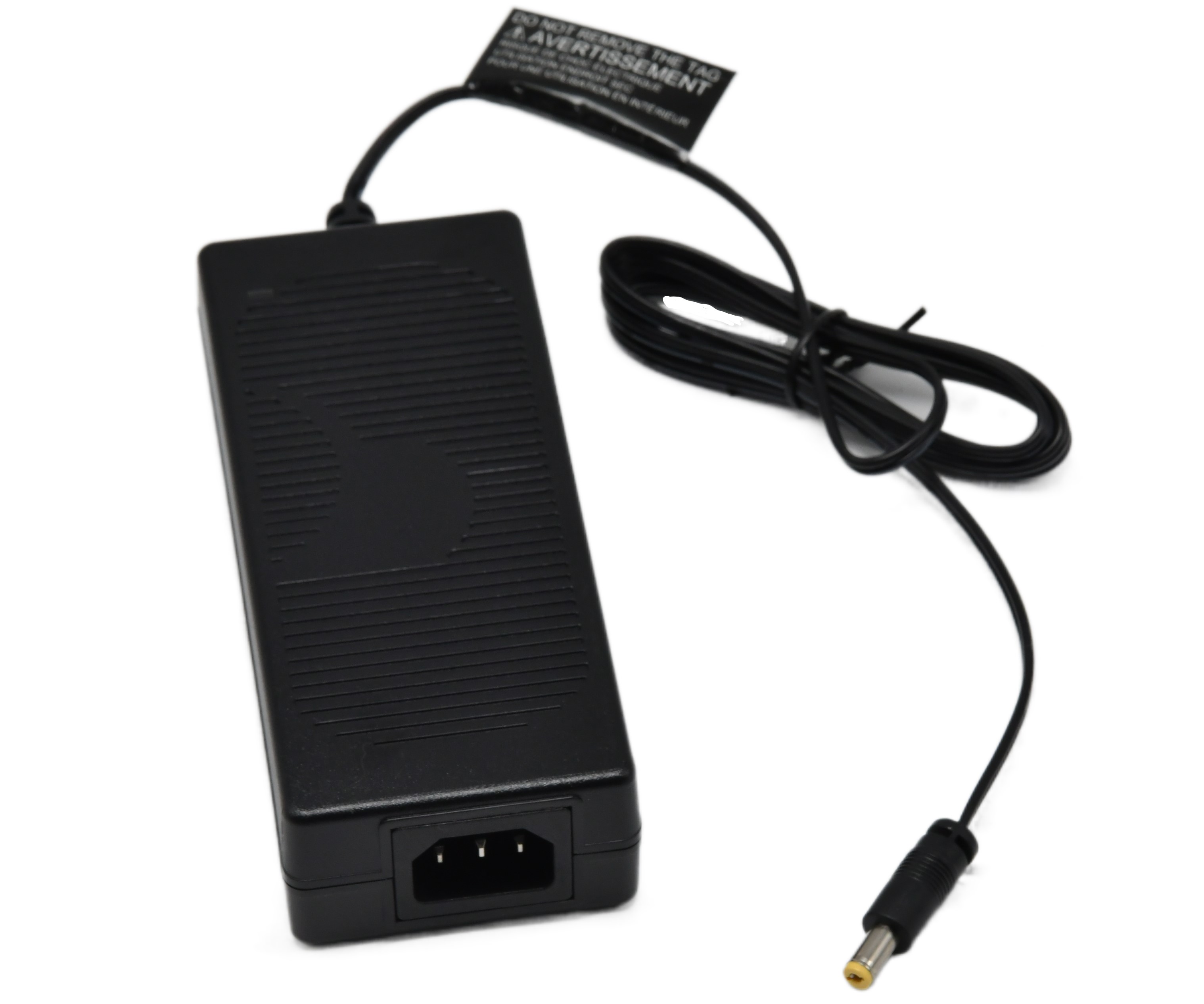

The GlobTek TR9CI5000S760KCIMR6B is a regulated switchmode AC-DC power supply designed for ICT, ITE, and medical applications. It delivers a robust 120W of power with a stable 24V output at 5A.
The unit accepts a universal input voltage range of 100-240V AC at 50-60 Hz, connecting via a standard IEC 60320/C14 inlet. The output is delivered through a 5.5mm x 2.1mm barrel connector with a center positive pin, specified at 1000mm cable length.
This power supply meets USA DOE Level VI and EU Eco-design Directive 2009/125/EC efficiency requirements, ensuring reduced energy consumption. It operates within an ambient temperature range of -10°C to 40°C and has a low no-load power consumption of 150mW maximum.
Designed for desktop or wall mounting, the power supply carries numerous international approvals including CB, CCC, CE, cETLus, EAC, ETL, RCM, and UKCA, making it suitable for global use. Its applications include Information Technology Equipment (ITE) and medical devices.
The TR9CI5000S760KCIMR6B power supply provides an output voltage of 24.0V at 5.0A.
This power supply uses an IEC 60320/C14 input connector.
The operating temperature range for this power supply is -10°C to 40°C.
The TR9CI5000S760KCIMR6B meets the Level VI efficiency standard.
The dimensions of the TR9CI5000S760KCIMR6B power supply are 149.4mm L x 62.8mm W x 34.0mm H.
